1/4

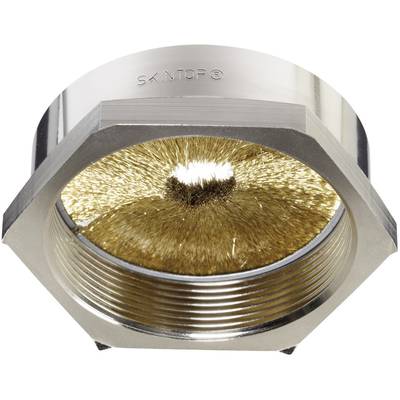

LAPP 54110840 SKINTOP® BRUSH ADD-ON M16 with PG clamps M16 M16 M16 Brass Brass 1 pc(s)
EAN:
Part number:
Item no:
Internal thread
M16
External thread
M16
Size
M16
Material
Brass
Features
with PG clamps
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Highlights & Details
LAPP 54110840 SKINTOP® BRUSH ADD-ON M16 with PG clamps M16 M16 M16 Brass Brass 1 pc(s)
Our service for you
Technical specifications
- Features
with PG clamps
- Internal thread
M16
- Factory colour
Brass
- External thread
M16
- Size
M16
- Spanner size
24 mm
- Min. temperature
-70 °C
- Max. temperature
+200 °C
- Material
Brass
- Halogen-free
No
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
54110840
- Type
SKINTOP® BRUSH ADD-ON M16
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 535161 LAPP 54110840 SKINTOP® BRUSH ADD-ON M16 with PG clamps M16 M16 M16 Brass Brass 1 pc(s)
Information
Information 535161 LAPP 54110840 SKINTOP® BRUSH ADD-ON M16 with PG clamps M16 M16 M16 Brass Brass 1 pc(s)
Description
Optimal, low-ohm 360° shield contact. For EMC-compliant earthing of the Cu shield braid or of the Cu-Wellenmantels. For EMC contact for through holes. Ideal for control cabinets, automation systems as well as conveying and transportation systems. When the locknut is tightened, it cuts through the insulating layer of the housing cutting edges/switching cabinet and thereby ensure an optimal contact.
This text is machine translated.
This text is machine translated.
