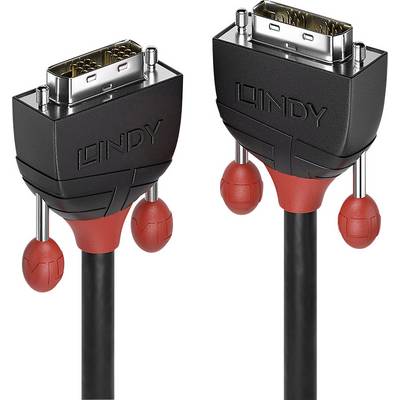

LINDY DVI Cable 1.00 m 36255 Black [1x DVI plug 19-pin - 1x DVI plug 19-pin]
Cable lines stands for the concept of contemporary, wired connectivity solutions from lindy. The Blackline DVI-D single link cable from the cable line concept are cable solutions for high resolutions with unlimited functionality in the entry-level se…
- Warranty: 24 months
- Manufacturer: LINDY
Cable lines stands for the concept of contemporary, wired connectivity solutions from lindy. The Blackline DVI-D single link cable from the cable line concept are cable solutions for high resolutions with unlimited functionality in the entry-level se…
- Warranty: 24 months
- Manufacturer: LINDY
Technical data
Cable type | DVI |
---|---|
No. of A connectors | 1 x |
Type A | DVI plug 19-pin |
No. of B connections | 1 x |
Type B | DVI plug 19-pin |
Cable length | 1.00 m |
Colour | Black |
Cable use | TV/monitor |
Type | Cable |
Video resolution | 1920 x 1200 p |
Product type | TV/monitor Cable |
---|
Documents & Downloads
Lindy 1m DVI-D Single Link Cable, Black Line
Cable lines stands for the concept of contemporary, wired connectivity solutions from lindy. The Blackline DVI-D single link cable from the cable line concept are cable solutions for high resolutions with unlimited functionality in the entry-level segment. They are ideal for professional business applications, but also for the small office/home office range.
The Blackline DVI-D single link premium cable have a 3-fold shielding and tin-plated copper conductor with 28 AWG-cross-section for the highest and loss-free transmission power. Long-term corrosion resistance and high reliability ensure the high quality of manufactured with 28K gold-plated contacts and nickel-plated plug-in sleeves.
The robust PVC housing is equipped with a built-in finger grip makes for easy and safe installation. With large knurled screws, the connector can be fixed without any other aids hard positioned and securely. The reinforced and flexible cable strain relief is ensured by an extended life span.
Black Line DVI-D single link cable support the maximum DVI-Single-Link-resolution up to 1920 x 1200 @ 60 Hz.
This text is machine translated.
Highlights & Details
- DVI-D single link cable, ideal for small office/home office range
- Supports DVI resolutions up to 1920 x 1200 @ 60 Hz and HDTV resolutions up to 1080p
- Robust PVC housing with nickel-plated plug and 24K gold-plated contacts
- 3-way shielded cable with corrosion-resistant, 28 AWG tin-plated copper conductor
Facts
- Connector A: DVI-D connector (single link)
- Connector B: DVI-D connector (single link)
- Housing material: PVC
- Coating of connector: Nickel
- Pin Design: brass
- Coating of pins: 24K Gold 1µm
- Standard: DVI-D Single Link
- Colour: Black
- Type: round
- Sheath diameter: 7.3mm (0.29 in)
- Sheath material: PVC
- Conductor material: tin-plated copper
- Conductor dimensions: 28 AWG
- Shielding: aluminum/Magnesium braided 85%
- Supported Tape width: 4.95 Gbit/s
- Maximum resolution: 1920 x 1200 @ 60 Hz
- Nominal Attenuation: 1-825 Mhz< 8 db
- Minimum bend radius: 120 mm (4.72 in)
- Operating temperature: -20°C - 80°C (-4°F - 176°F)
- Storage temperature: -25°C - 85°C (-13°F - 185°F)
- Warranty: 24 months
- Manufacturer: LINDY
