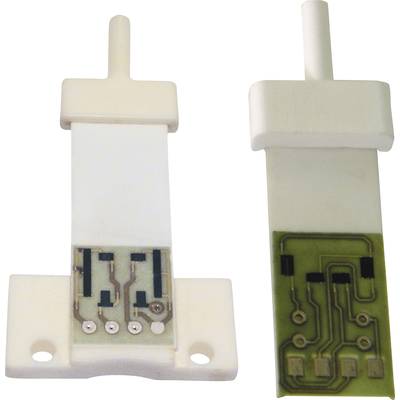

Load cell 1 pc(s) 1531(type1)-0.2kg 200 g (max) (L x W) 48.4 mm x 25 mm

  • Item no.: 1207605
  • Manufacturer no.: 400710
  • EAN: 2050002331808

High-quality, ceramic-to-fly transducer for the measurement of tensile forces. Due to the very low design well in different applications can be integrated. Further characteristic are the very low Non linearity and Hysteresis, as well as the high Wied…

  • Warranty: 24 months
  • Item no.: 1207605
  • Manufacturer no.: 400710
  • EAN: 2050002331808

High-quality, ceramic-to-fly transducer for the measurement of tensile forces. Due to the very low design well in different applications can be integrated. Further characteristic are the very low Non linearity and Hysteresis, as well as the high Wied…

  • Warranty: 24 months
  • Output resistance: 9.5 kΩ
  • Input resistance: 11kΩ
  • Basic accuracy: (FS) 0.5%
  • Pressure: (FS) 150%
  • Output resistance: 9.5 kΩ
Type 1531(type1)-0.2kg
Output signal (max.) 5.5 mV/V
Pressure reading range (max.) 200 g
Pressure reading range 200 g (max)
Min. operating voltage 5 V DC
Max. operating voltage 25 V DC
Operating voltage 5 - 25 V DC
IP rating
IP65
Length 48.4 mm
Width 25 mm
Type 1531 (type 1) to 0.2 kg
Product type Load cell

Technical data

  • Output resistance: 9.5 kΩ
  • Input resistance: 11kΩ
  • Basic accuracy: (FS) 0.5%
  • Pressure: (FS) 150%
  • Output resistance: 9.5 kΩ
Type 1531(type1)-0.2kg
Output signal (max.) 5.5 mV/V
Pressure reading range (max.) 200 g
Pressure reading range 200 g (max)
Min. operating voltage 5 V DC
Max. operating voltage 25 V DC
Operating voltage 5 - 25 V DC
IP rating
IP65
Length 48.4 mm
Width 25 mm
