Image similar
Image similar
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 59.66
5
3% = € 1.79
€ 57.87
10
5% = € 2.99
€ 56.67
50
10% = € 5.97
€ 53.69
100
20% = € 11.94
€ 47.72
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 59.66 / piece)
€ 74.78
-20 %
€ 59.66
plus VAT.
14-day return policy included
Highlights & Details

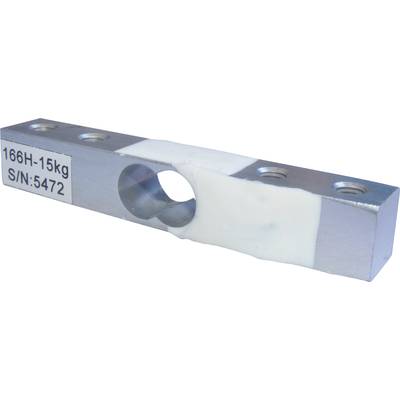

Load Cell 166 H
Our service for you
Technical specifications
- Output resistance: 1 kΩ
- Input resistance: 1.06 kΩ
- Basic accuracy: (FS) 0.02%
- Pressure: (FS) 120%
- Output resistance: 1 kΩ
- Connection cable: 4-way shielded, PVC sheathed cable, Ø 3.8 mm, length 0.25 m
- Material: aluminium
- Product type
Load cell
- Type
166H-1kg
- Output signal (max.)
1 mV/V
- Pressure reading range (max.)
1 kg
- Pressure reading range
1 kg (max)
- Min. operating voltage
5 V DC
- Max. operating voltage
10 V DC
- Operating voltage
5 - 10 V DC
IP65
- Length
80 mm
- Width
12.7 mm
- Height
12.7 mm
- Dim
(L x W x H) 80 x 12.7 x 12.7 mm
- RoHS-compliant
Yes
- Type
166 H-1 kg
Documents & Downloads
Datasheet
Datasheet 1207607 100197 Load cell 1 pc(s) 1 kg (max) (L x W x H) 80 x 12.7 x 12.7 mm
Description
High-quality made of aluminum, weighing cell. A good alternative to high-priced force sensors.
