Buy Manhattan 432351 Monitor wall mount 30,5 cm (12") - 55,9 cm (22") Tiltable, Swivelling

Black monitor mount with swivel arm and VESA mounting. Suitable for wall mounting of displays. Wall bracket with rotation mechanism.

Black steel plate with a central pivot joint and four symmetrical mounting holes, commonly used for monitor or TV mounting.

Black metal monitor mount with VESA mounting plate, tiltable and swivel, showing two parts: plate and mounting arm.

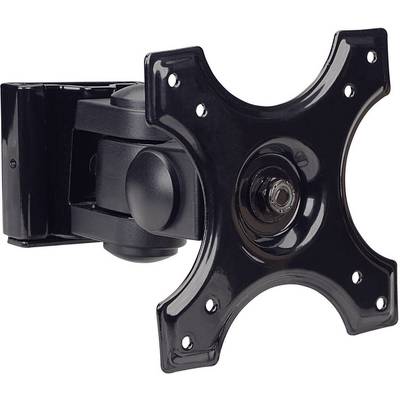

A black, wall-mounted TV bracket with four mounting points, suitable for flat screens.

Black monitor mount with articulated arm, enabling flexible positioning and adjustment of a monitor on a wall or desk.

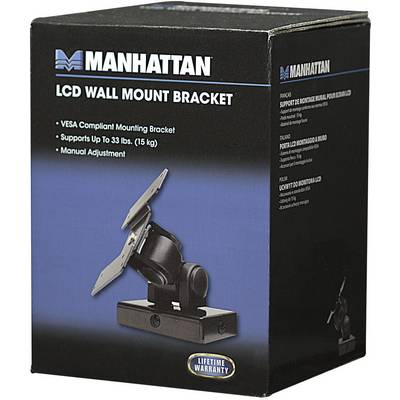

Packaging for a 'LCD Wall Mount Bracket' by MANHATTAN. Supports VESA-compatible mounting, up to 15 kg. Manual adjustment mechanism.

'Manhattan Monitor Wall Mount', for monitors up to 22" and 12 kg. Optimises workspace and viewing angle.

Manhattan monitor wall mount, suitable for monitors up to 22 inches and 12 kg. Optimises workspace and viewing angle.

'Monitor Wall Mount' by Manhattan shows a wall mounting bracket. The text describes space savings and improved viewing angles.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 22.68 / piece)

€ 22.68

plus VAT.

14-day return policy included

Report legal concerns

Manhattan Monitor Wall Mount, Adjustable

Highlights & Details

Securely holds one LCD monitor on wall to improve views, increase work space and minimize clutter
Optimize monitor view with tilt, rotate and side-to-side adjustments
Two-piece bracket with heavy-duty, steel construction easily mounts to most vertical surfaces
Low-profile installation ideal for home, office and commercial applications
Meets VESA standards — fits monitors from 13" to 22" and up to 26 pounds

Technical specifications

Product type: Monitor wall mount

Suitable for: 30,5 cm (12") - 55,9 cm (22")

Add-on displays: 1 Display(s)

Holder type: Tiltable
Swivelling

: No

Max. load capacity: 12 kg

: No

: 75 x 75 mm
100 x 100 mm

Rotation: 0°

Tilt range (bottom): -12°

Tilt range (top): +12°

Swivel range (left): 90°

Swivel range (right): 90°

Distance to wall (min.): 12.5 cm

Distance to wall (max.): 12.5 cm

Width: 80 mm

Height: 65 mm

Depth: 125 mm

Factory colour: Black

Material (details): Steel

Weight: 0.7 kg

Dim: (W x H x D) 80 x 65 x 125 mm

Suitable for: 30,5 cm (12")
30,7 cm (12,1")
31,0 cm (12,2")
31,8 cm (12,5")
32,8 cm (12,9")
33,0 cm (13")
33,8 cm (13,3")
35,6 cm (14")
38,1 cm (15")
39,6 cm (15,6")
40,6 cm (16")
43,2 cm (17")
45,7 cm (18")
48,3 cm (19")
50,8 cm (20")
54,6 cm (21,5")
55,9 cm (22")
Show more

Product type description: Zubehör TFT/LCD-TV

Documents & Downloads

Datasheet

Datasheet 995327 Manhattan 432351 Monitor wall mount 30,5 cm (12") - 55,9 cm (22") Tiltable, Swivelling

User & Safety Instructions

User & Safety Instructions 995327 Manhattan 432351 Monitor wall mount 30,5 cm (12") - 55,9 cm (22") Tiltable, Swivelling

Information

Information 995327 Manhattan 432351 Monitor wall mount 30,5 cm (12") - 55,9 cm (22") Tiltable, Swivelling

Description

Better utilize work space, improve ergonomics and share views.
The Manhattan LCD Wall Mount provides a secure and elevated position for a single flat-panel display to help keep valuable desk and work space free and uncluttered. Its adjustable tilt, rotate, side-to-side settings enable a comfortable and productive viewing position. Durable die-cast aluminum construction and two-piece bracket provide a quick, easy and secure mount to most vertical surfaces. VESA compliant and ready to install with included hardware.
