Buy Manhattan 461580 Monitor desk mount 1 Display(s) 43,2 cm (17") - 81,3 cm (32") Black Rotatable, Height-adjustable, Tilta

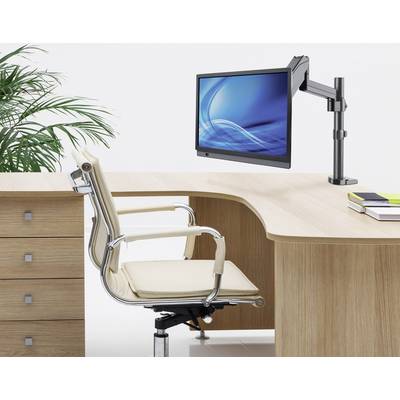

A modern desk with a wooden floor, an ergonomic office chair, a monitor stand with a screen and some files.

Black monitor mount with adjustable arm and desk clamp for attachment. Suitable for ergonomic positioning of a screen.

Two black metal desk clamps for attaching a rod or monitor arm. The clamp is fixed on the left, open on the right.

Black monitor arm with desk-mounted clamp, adjustable in height and depth, for ergonomic screen positioning.

1/5

Unavailable

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Manhattan universal table mount with gas spring for a monitor bracket arm with gas spring

Highlights & Details

Holder type: Rotatable, Height-adjustable, Tiltable, SwivellingSupports VESA standards up toSuitable for displays sized (range): 43,2 cm (17") - 81,3 cm (32")Load capacity (max.) 8 kg

Technical specifications

Product type: Monitor desk mount

Suitable for: 43,2 cm (17") - 81,3 cm (32")

Add-on displays: 1 Display(s)

Holder type: Rotatable
Height-adjustable
Tiltable
Swivelling

Features: Pneumatic

: No

Max. load capacity: 8 kg

: Yes

: 100 x 100 mm
100 x 75 mm
75 x 75 mm

Rotation: 180°

Max. table thickness: 80 mm

Tilt range (bottom): 35°

Tilt range (top): 35°

Swivel range (left): 90°

Swivel range (right): 90°

Width: 114 mm

Height: 745 mm

Depth: 534 mm

Factory colour: Black

Weight: 3.38 kg

Dim: (W x H x D) 114 x 745 x 534 mm

Suitable for: 43,2 cm (17")
43,9 cm (17,3")
45,7 cm (18")
48,3 cm (19")
50,8 cm (20")
53,3 cm (21")
54,6 cm (21,5")
55,9 cm (22")
58,4 cm (23")
59,9 cm (23,6")
61 cm (24")
63,5 cm (25")
66,0 cm (26")
68,6 cm (27")
71,1 cm (28")
73,7 cm (29")
76,2 cm (30")
78,7 cm (31")
81,3 cm (32")
Show more

Product type description: Zubehör TFT/LCD-TV

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1909748 Manhattan 461580 Monitor desk mount 1 Display(s) 43,2 cm (17") - 81,3 cm (32") Black Rotatable, Height-adjustable, Tilta

Description

The perfect perspective can be adjusted easily
This Manhattan universal mount offers maximum comfort and freedom of movement for desktop mounting of your monitor. Thanks to the gas pressure spring, you can adjust the height effortlessly at any time – a light touch is sufficient. Full tilt and swivel capability is provided by the integrated ball joint, the extension arm provides additional flexibility. With VESA compliance and quality material, the bracket is suitable for a wide range of curved and flat screen sizes and provides a reliable mounting over the table with a load capacity of 8 kg.

This text is machine translated.
