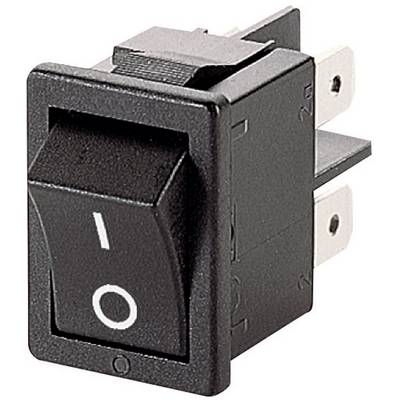

Marquardt 1858.1103 Toggle switch 1858.1103 250 V AC 10 A 2 x Off/On IP40 latch 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.21
10
7% = € 0.24
€ 2.97
25
11% = € 0.34
€ 2.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.21 / piece)
€
Highlights & Details
Rocker switch 1858 series
Technical specifications
- Approvals ENEC, UL, CSA
- Casing/button colour
Black
- Functions
latch
- Lighting type
None
- Switch position
2 x Off/On
- Print motif
0/I
- Contact material
Ag (Silver)
- Connection
Type C CEE 7/16 plug 4.8 mm
- Switching voltage
250 V AC
- Switching current (max.)
10 A
- Length
21 mm
- Width
15 mm
- Recess depth
21.5 mm
- Front panel thickness
3 mm
IP40
- Content
1 pc(s)
- Dim
(L x W) 21 mm x 15 mm
- RoHS-compliant
- Front panel cut-out
19.2 x 12.9 mm
- Type
1858.1103
- Type
2 x Off/On
- Switching current (inductive)
4 A
- Switching current
10 (4) A
- Type
1858.1103
- Connection
Spade plug 4.8 mm
- Product type
Toggle switch
Documents & Downloads
Datasheet
Datasheet 703110 Marquardt 1858.1103 Toggle switch 1858.1103 250 V AC 10 A 2 x Off/On IP40 latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 703110 Marquardt 1858.1103 Toggle switch 1858.1103 250 V AC 10 A 2 x Off/On IP40 latch 1 pc(s)
Description
Without Lights ,Highly productive , miniature - rockertype control switch.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
