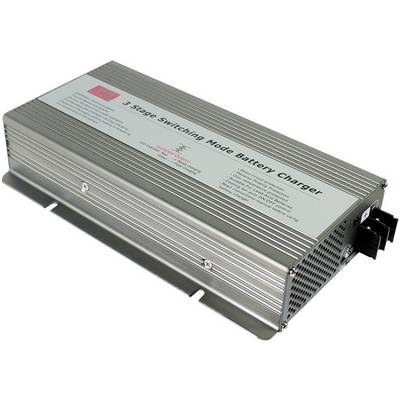

MEAN WELL VRLA charger PB-300P-12 12 V Charging current (max.) 20.85 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
14-day return policy included
Highlights & Details
Lead-acid charger 12V, 20.85 A
- 3-stage charger
- Overload protection through current limitation
- With screw terminals
Technical specifications
- Temperature range: -10 to +50°C
- Product type
VRLA charger
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
- Suitable for lead-type rechargeables
12 V
- Recommended battery capacity (min.)
60 Ah
- Recommended battery capacity (max.)
200 Ah
- Charging slots
1
- Operating voltage
90 - 264 V
- Charging current (max.)
20.85 A
- Charging current at 12 V
20.85 A
- Charge Voltage
14.4 V
- Length
253 mm
- Width
135 mm
- Height
49 mm
- Weight
1750 g
- Dim
(L x W x H) 253 x 135 x 49 mm
Documents & Downloads
Datasheet
Datasheet 1328187 MEAN WELL VRLA charger PB-300P-12 12 V Charging current (max.) 20.85 A
User & Safety Instructions
User & Safety Instructions 1328187 MEAN WELL VRLA charger PB-300P-12 12 V Charging current (max.) 20.85 A
Information
Information 1328187 MEAN WELL VRLA charger PB-300P-12 12 V Charging current (max.) 20.85 A
Conformity certificate
Conformity certificate 1328187 MEAN WELL VRLA charger PB-300P-12 12 V Charging current (max.) 20.85 A
Warranty Terms
Warranty Terms 1328187 MEAN WELL VRLA charger PB-300P-12 12 V Charging current (max.) 20.85 A
Description
Battery charger with a high degree of efficiency for lead-acid batteries. Connection via screw terminals and PFC function.
This text is machine translated.
This text is machine translated.
Features
- 3-stage charger for lead-acid batteries
- Universal input
- Switch for 115 V/230 V
- Overload protection through current limitation, auto recovery
- Protection against reverse current, short circuit, overvoltage and overtemperature
- Screw terminals
- Two-colour LED display
Scope of delivery
- Charger
- User manual.
Hints
Power cable, please order separately.
