Metz Connect MMT471A115-0001 PCB terminal M12 Socket No. of pins (RJ): 4 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
PCB terminal
Connector type
Socket
Connector standard
Ethernet
Connection side A
M12
No. of pins
4
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
14-day return policy included
Highlights & Details
PCB socket M12, D-coded, 4-pin, IP67, 90° angled, Max. 4 mm wall thickness
- M12 PCB socketM12 EthernetBTR Netcom
Technical specifications
- Dimensions (LxWxH) 27.50 x 19.50 x 22 mm
- Packaging type
Piece
- Type
MMT471A115-0001
- Product type
PCB terminal
- Connector type
Socket
- Connector standard
Ethernet
- Connection side A
M12
- No. of pins
4
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
M12 socket
- Factory colour
Metal
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
D
IP67
- Features
D-coded
- Min. temperature
-40 °C
- Max. temperature
+90 °C
- Manufacturer part #
MMT471A115-0001
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2860670 Metz Connect MMT471A115-0001 PCB terminal M12 Socket No. of pins (RJ): 4 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2860670 Metz Connect MMT471A115-0001 PCB terminal M12 Socket No. of pins (RJ): 4 1 pc(s) Piece
Description

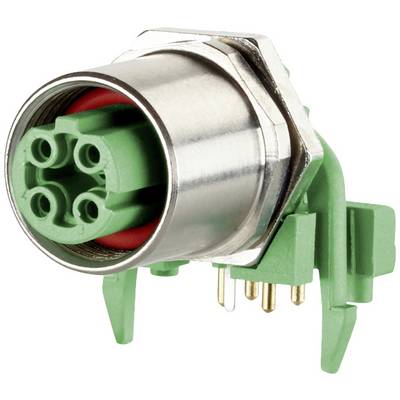

PCB socket M12, 4-pin, D-coded according to IEC 61076-2-101, 90° angled, THR solderable, plug direction horizontal, contact carrier green, Protection class IP67 when connected, suitable for a wall thickness of up to 4 mm, suitable for applications in the railway industry.
