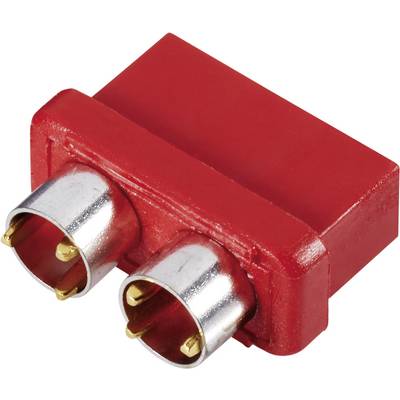

Modelcraft 224596 Battery receptacle MPX 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.25
5
7% = € 0.09
€ 1.16
10
10% = € 0.12
€ 1.13
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 1.25 / piece)
€ 1.25
plus VAT.
14-day return policy included
Highlights & Details
High current plug connection
- Reverse polarity protected
Technical specifications
- Product type
Battery receptacle
- Type
Red socket
- Connector system
MPX
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 224596 Modelcraft 224596 Battery receptacle MPX 1 pc(s)
User & Safety Instructions
User & Safety Instructions 224596 Modelcraft 224596 Battery receptacle MPX 1 pc(s)
Description
If an individual cable is distributed on 3 contacts, the transition resistance reduces to a minimum. Thus the security of the plug connection substantially increases
Features
- A separating strip between the poles prevents the touching of soldered cable
- Voltage reversal is not possible
- Contact resistance 0.6 mΩ
- For max. Cable cross section 6.0mm² (AWG 11)
- Current carrying capacity: 35A (continuous), 40A (5min), 60A (Impulse).
Hints
In the present context, the terms "socket" and "plug" refer to contacts, not connector types.
