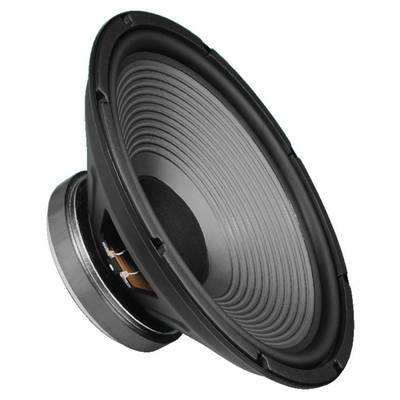

Monacor SPH-390TC 15 inch 38.5 cm Subwoofer 150 W 8 Ω
EAN:
Part number:
Item no:
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
14-day return policy included
Technical specifications
- Impedance (Z): 2 x 8 Ohm
- Resonant frequency (fs): 23 Hz
- Max. 3-1500 Hz frequency range: f
- Maximum load-carrying capacity 2 x 300 WMAX
- Nominal load (P): 2 x 150 WRMS
- Avg. Sound pressure (1W/m): 96 dB
- Suspension compliance (cms): 0.3 mm/N
- Moved mass (MMS): 160 g
- Mechanical quality (Qms): 6,36
- Electrical quality (Qes): 0.29
- Total quality (Qts): 0.26
- Equivalent volume (Vas): 284 l
- Dc resistance (Re): 2 x 6 Ohm/3 ohms
- Power factor (BxL): 16,72 Tm
- Schwingspulenind. (Le): 2 x1,3m H/1.3 mH
- Voice coil diameter: 65.5 mm
- Kapton voice coil carrier:
- Linear excursion (Xmax): +/-7 mm
- Eff. Cone area (sd): 850 cm2
- Magnet weight: 1.8 kg
- Weight: 7.5 kg
- Product type
Subwoofer
- Speaker size (inch)
15 inch
- Speaker size (cm)
38.5 cm
- RMS capacity
150 W
- Max. load
300 W
- Min. frequency
23 Hz
- Max. frequency
1500 Hz
- Impedance
8 Ω
- Sound pressure
96 dB
- Recess diameter
34.8 cm
- Recess depth
17 cm
- Weight
7.5 kg
- Frequency range
23 Hz - 1500 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332703 Monacor SPH-390TC 15 inch 38.5 cm Subwoofer 150 W 8 Ω
Description
Features
- Hi-Fi subwoofer, 2 x 300 WMAX, 2 x 150 WRMS, 2 x 8 Ohm
- High-performance double oscillation coil chassis
- Sturdy steel basket
- Carbonized PP-membrane
- Very large linear excursion capability
- Parameters for extremely powerful and profound bass reproduction in a bass reflex enclosure
- This text is machine translated.
