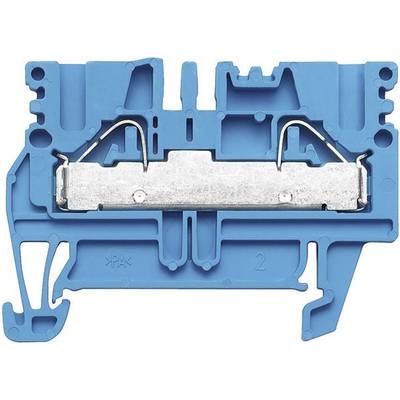

Weidmüller 1896230000-1 Continuity 5.10 mm Pull spring Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
Datasheet (PDF)
Total (€ 0.66 / piece)
€ 0.66
plus VAT.
14-day return policy included
Highlights & Details
Continuity series terminal PDU blue
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- AWG max.
10
- Clamp width
5.10 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Blue
- Nominal current - rounded value
- Stripping length (max.)
12 mm
- Manufacturer part #
1896230000-1
- Content
1 pc(s)
- Industrial packaging
No
- Type
PDU 2.5/4 BL
- Dim
(L x W x H) 53 x 5.1 x 38 mm
- Width
5.1 mm
- Height
38 mm
- Length
53 mm
- RoHS-compliant
Yes
- Connections
2
- Nominal voltage (details)
800 V
- Nominal current (details)
32 A
- Connector cross-section (flexible)
0.5 - 4 mm²
- Connector cross section (fixed)
0.5 - 4 mm²
Documents & Downloads
Datasheet
Datasheet 742854 Weidmüller 1896230000-1 Continuity 5.10 mm Pull spring Blue 1 pc(s)
