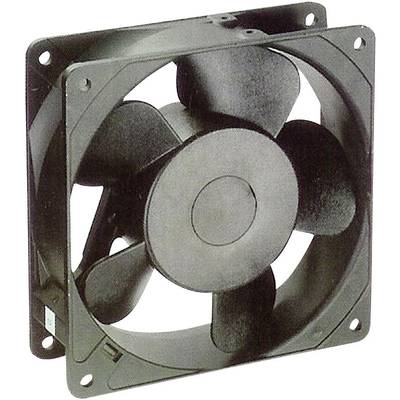

NMB Minebea 4715MS-12T-B5A Axial fan 115 V AC 174 m³/h (L x W x H) 119 x 119 x 38 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
115 V AC
Power
15.5 W
Type of bearing
Ball bearing
Air flow rate
174 m³/h
Datasheet (PDF)
103 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 41.17
-39 %
€
Technical specifications
- Product type
Axial fan
- Type
4715MS-12T-B5A
- Nominal voltage
115 V AC
- Max. current consumption
250 mA
15.5 W
- Type of bearing
Ball bearing
- Rotational speed
2900 U/min
- Noise emission (max.)
41 dB
- Air flow rate
174 m³/h
- Connection
Type C CEE 7/16 plug 2.8 mm
- Factory colour
Black
- Material
Aluminium
Polycarbonate (PC)
in 25 ºC (L10) bis 100000 h
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
119 mm
- Width
119 mm
- Height
38 mm
- Dim
(L x W x H) 119 x 119 x 38 mm
15 W
- Output (max.) (details)
2.90 m3/min
- Max. noise generation
41 dBa
- Type
4715MS-12T-B5A-D00
- Temperature range
-10 - +70 ºC °C
- Operating voltage
115 V AC
Documents & Downloads
Datasheet
Datasheet 189458 NMB Minebea 4715MS-12T-B5A Axial fan 115 V AC 174 m³/h (L x W x H) 119 x 119 x 38 mm
Conformity certificate
Conformity certificate 189458 NMB Minebea 4715MS-12T-B5A Axial fan 115 V AC 174 m³/h (L x W x H) 119 x 119 x 38 mm
Description
This Fan with ball bearing by NMB® conforms highest quality standards. Rotating direction of the rotor side is towards left over blowing support link
