Buy Osram Automotive High beam LEDDL110-CB LEDDL110-CB LED (monochrome) front (L x W x H) 54 x 390 x 86 mm

A black OSRAM LED light bar in front of its packaging, showing the light bar and car headlights. 5 years warranty.

Elongated LED light bar in a black housing with mounting brackets on the sides, suitable for use as supplementary lighting.

Two cars are parked on a rocky surface at sunrise. On the left, a white SUV; on the right, a black car. Mountains in the background.

A rectangular LED light bar with side mounting brackets, resting on a reflective surface. Suitable for vehicle installation.

Heat exchanger with a cylindrical casing and multiple connections; used for efficient heat transfer in industrial applications.

A rectangular LED light with a black mounting, horizontally installed. It shines brightly in a modern room.

A rectangular LED light bar in a black housing with mountable brackets at both ends. Ideal for vehicles.

Front view of a car with robust underbody protection and illuminated LED lights lighting up the front section.

LED light bars from OSRAM with mounting materials, including brackets, screws and nuts.

Close-up of a car with a matt black radiator grille and silver bull bar.

A black tube heater with multiple parallel-running fins, supported by two mounting brackets.

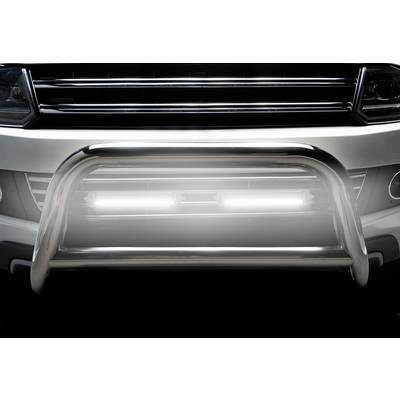

Front view of a car with a gleaming bumper and illuminated LED daytime running lights.

Technical Drawing of a Rectangular Headlight with Dimensions: Length 390 mm, Height 76 mm, Width 86 mm. Side and Front Views.

Technical Drawing: Side and Top Cross-Section of a Mechanical Device with Gears, Levers and Multiple Rectangular Elements

Diagram of a light beam with lux values of 0.3, 1, 0.5 and 0.25, representing different widths. Horizontal axis in metres.

1/15

Dispatches on Tue, 6 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 193.27 / piece)

€ 193.27

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

LED additional light LEDriving® Lightbar MX250-CB

Increased traffic safety
Combined near and long field illumination
Compact and robust
Over and under voltage protection

Technical specifications

Dim: (L x W x H) 54 x 390 x 86 mm

Product type: High beam

Bulb type: LED (monochrome)

Recommended use: ATVs
Construction plant
Bus
Agriculture
HGVs
Cars
Quads
SUVs
Forklifts
Van
Camper vans
Show more

Version: High beam

Fastening method: Screw mount

Operating voltage: 12 V
24 V

Content: 1 pc(s)

Compatible with: Universal

Compatible with: Universal

Width: 390 mm

Height: 86 mm

Length: 54 mm

Reference number (Ref.): 30

ECE type approval labels: R7/R112

: 6000 K

Total luminous flux: 2700 lm

Mounting site: front

Lenses for: Wide angle illumination

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2302101 Osram Automotive High beam LEDDL110-CB LEDDL110-CB LED (monochrome) front (L x W x H) 54 x 390 x 86 mm

Warranty Terms

Warranty Terms 2302101 Osram Automotive High beam LEDDL110-CB LEDDL110-CB LED (monochrome) front (L x W x H) 54 x 390 x 86 mm

Description

The Lightbar additional spotlight is a complete LED additional spotlight and LED side light with 6000 Kelvin.

This text is machine translated.

Features

Additional remote light (ECE R112) and parking light (ECE R7)
Compact and robust: Break-proof polycarbonate lens for high loads
Over and under voltage protection
Integrated driver and heat management system for an increased life span
Combo Beam (CB): Combined near and long-field lighting or spot beam (SP): Improved long-field lighting
Increased traffic safety: Up to 320 m beam range
Light range @1lx: 320 m
Hot lumen: 2700 lm
Color temperature 6000 K
Nominal input power: 45/1 W
Input voltage: 12/24 V
Life: 5000 h
IP class: IP69K
ECE: R7, R112 (Ref. No. 30)
EMC/EMI: ECE R10
Cable length 100 cm
This text is machine translated.
