Panasonic ACT112 Automotive relay 12 V DC 20 A 1 change-over

  • Item no.: 504988
  • Manufacturer no.: ACT112
  • EAN: 2050000155260

Narrow miniature automotive relay in sealed enclosure. Available as single or double coil relay. CT2-relay with an integrated H-bridge for motor reversing circuit. Application: comfort electronics, power windows, central locking, seat adjustment, sun…

  • Item no.: 504988
  • Manufacturer no.: ACT112
  • EAN: 2050000155260

Narrow miniature automotive relay in sealed enclosure. Available as single or double coil relay. CT2-relay with an integrated H-bridge for motor reversing circuit. Application: comfort electronics, power windows, central locking, seat adjustment, sun…

  • Switching current (min.): (at 12 V/DC) 1 A
  • Coil rating: 800 mW
Type ACT112
Features w/o elbow mount
Coil nominal voltage 12 V DC
Contact type 1 change-over
Contact material Silver alloy
Connection Print
Switching voltage (max.) 14 V DC
Switching current (max.) 20 A
R(coil) 180 Ω
Durability 1 x 107
Min. temperature -40 °C
Max. temperature +85 °C

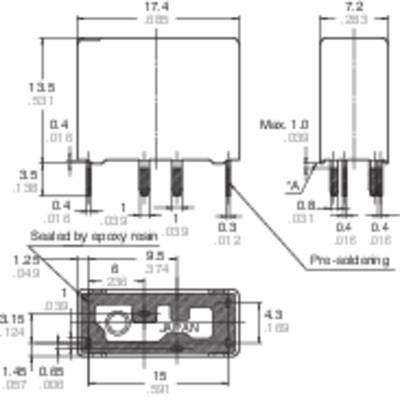

Width 7.2 mm
Height 13.5 mm
Length 17.4 mm
Type 1 changeover contact, 1 coil
Power consumption 800 mW
Nominal voltage (details) 12 V DC
Switching capacity (NO) 20 A/14 V / DC, (NC) 10 A/14 V DC
Type ACT112
Ambient temperature -40 - +85 °C
Min. switching current (at 12 V/DC) 1 A
Contact type 1 changeover
Product type Automotive relay

Technical data

  • Switching current (min.): (at 12 V/DC) 1 A
  • Coil rating: 800 mW
Type ACT112
Features w/o elbow mount
Coil nominal voltage 12 V DC
Contact type 1 change-over
Contact material Silver alloy
Connection Print
Switching voltage (max.) 14 V DC
Switching current (max.) 20 A
R(coil) 180 Ω
Durability 1 x 107
