Panasonic AGQ20024 PCB relay 24 V DC 1 A 2 change-overs 1 pc(s)

Item no.: 504834
Manufacturer no.: AGQ20024
EAN: 2050000452918

Extremely compact and low profile ultra-miniature signal relays, small footprint for high packing densities. Very high voltage resistance according to Bellcore standard. Applications: telecommunications, consumer electronics, instrumentation, safety …

Full description

Warranty: 24 months
Manufacturer: Panasonic

Item no.: 504834
Manufacturer no.: AGQ20024
EAN: 2050000452918

Extremely compact and low profile ultra-miniature signal relays, small footprint for high packing densities. Very high voltage resistance according to Bellcore standard. Applications: telecommunications, consumer electronics, instrumentation, safety …

Full description

Warranty: 24 months
Manufacturer: Panasonic

Technical data Description Downloads (1) Write New Review

Type	AGQ20024
Coil nominal voltage	24 V DC
Min. pick-up voltage	18 V DC
Max. pick-up voltage	28.8 V DC
Control mode	monostable, 1 coil
R_(coil)	2504 Ω

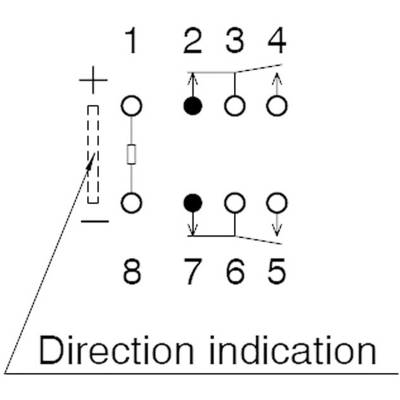

Contact type	2 change-overs
Contact material	AgPd + Au
Switching voltage (max.)	110 V DC , 125 V AC
Switching current (max.)	1 A
Max. switching capacity	30 W , 37.5 VA

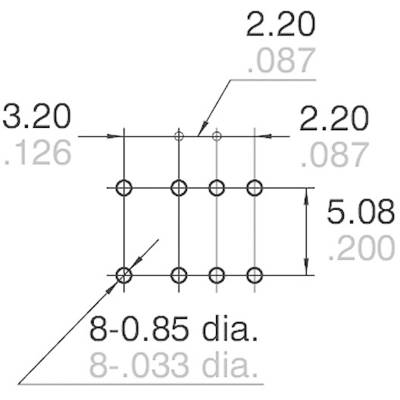

Connection	Solder pins
Durability	5 x 10⁷
Min. temperature	-40 °C
Max. temperature	+85 °C
Length	10.6 mm
Width	7.2 mm
Height	5.2 mm
Dim	(L x W x H) 10.6 x 7.2 x 5.2 mm
Content	1 pc(s)
Type	monostabile
I_S max.	1 A
Nominal voltage (details)	24 V DC
Switching capacity	Max -30 W/37.5 VA
Dielectric strength	(Coil/Contct) 2.5 kV
Type	AGQ20024
Ambient temperature	-40 - +85 °C
Contact type	2 CO, DPDT
Product type	PCB relay

Technical data

Type	AGQ20024
Coil nominal voltage	24 V DC
Min. pick-up voltage	18 V DC
Max. pick-up voltage	28.8 V DC
Control mode	monostable, 1 coil
R_(coil)	2504 Ω
Contact type	2 change-overs
Contact material	AgPd + Au
Switching voltage (max.)	110 V DC , 125 V AC
Switching current (max.)	1 A

Max. switching capacity	30 W , 37.5 VA
Connection	Solder pins
Durability	5 x 10⁷
Min. temperature	-40 °C
Max. temperature	+85 °C
Length	10.6 mm
Width	7.2 mm
Height	5.2 mm
Dim	(L x W x H) 10.6 x 7.2 x 5.2 mm
Content	1 pc(s)
Type	monostabile
I_S max.	1 A
Nominal voltage (details)	24 V DC
Switching capacity	Max -30 W/37.5 VA
Dielectric strength	(Coil/Contct) 2.5 kV
Type	AGQ20024
Ambient temperature	-40 - +85 °C
Contact type	2 CO, DPDT
Product type	PCB relay

Documents & Downloads

Datasheet 504834 Panasonic AGQ20024 PCB relay 24 V DC 1 A 2 change-overs 1 pc(s)
PDF

Signal relay GQ 1 A, Print

Extremely compact and low profile ultra-miniature signal relays, small footprint for high packing densities. Very high voltage resistance according to Bellcore standard. Applications: telecommunications, consumer electronics, instrumentation, safety and medical technology.

Warranty: 24 months
Manufacturer: Panasonic

Comments

Approvals: UL, CSA, BSI.
