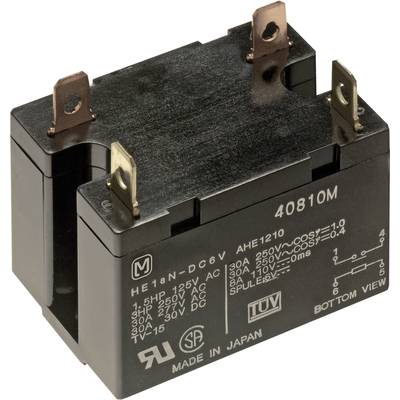

Panasonic HE1AN12 PCB relay 12 V DC 30 A 1 maker 1 pc(s)
- Item no.: 504791
- Manufacturer no.: HE1AN12
- EAN: 4016138036602
Compact mains isolation relay for direct and alternating current. Outstanding inrush current characteristic and high temperature constancy. Application: Brown goods, consumer electronics, house device technology, office devices, power supplies.
- Warranty: 24 months
- Manufacturer: Panasonic
- Item no.: 504791
- Manufacturer no.: HE1AN12
- EAN: 4016138036602
Compact mains isolation relay for direct and alternating current. Outstanding inrush current characteristic and high temperature constancy. Application: Brown goods, consumer electronics, house device technology, office devices, power supplies.
- Warranty: 24 months
- Manufacturer: Panasonic
Technical data
- Operating voltage max. 110% of the coil voltage
- Min. drop-off voltage over 10 % DC coil or 15 % AC coil of the coil voltage
- Max. pickup voltage less than 70% of the coil voltage
- Insulation distance 8 mm
| Type | HE1AN12 |
|---|---|
| Coil nominal voltage | 12 V DC |
| Min. pick-up voltage | 8.4 V DC |
| Max. pick-up voltage | 13.2 V DC |
| Control mode | monostable, 1 coil |
| R(coil) | 75 Ω |
| Contact type | 1 maker |
| Contact material | AgSnO2 |
| Switching voltage (max.) | 30 V DC , 277 V AC |
| Switching current (max.) | 30 A |
| Max. switching capacity | 8310 VA |
|---|---|
| Creepage distance (coil/clips) | 3 mm |
| Connection | Solder pins |
| Durability | 1 x 107 |
| Min. temperature | -40 °C |
| Max. temperature | +55 °C |
| Length | 50 mm |
| Width | 33 mm |
| Height | 35 mm |
| Dim | (L x W x H) 50 x 33 x 35 mm |
| Content | 1 pc(s) |
| Type | monostabile |
| Power consumption | 1.92 W |
| IS max. | 30 A |
| Nominal voltage (details) | 12 V |
| Switching capacity | 8310 VA |
| Switching voltage | 30 V/DC/277 V AC |
| Switching current | 30 A |
| Dielectric strength | (Coil / contact) Min 10 kV |
| Type | HE1AN12 |
| Ambient temperature | -40 to +55 °C |
| Air/creeping distance | Min 3 mm |
| Coil rating | 1920 mW |
| Breakdown voltage | Breakdown voltage: Open contacts 2000 Vrms for 1 min., between contacts and coil 5000 Vrms for 1 min., between contact pairs 4000 Vrms for 1 min cpcs.unit.vrms |
| Contact type | 1 NO, SPST-NO |
| Product type | PCB relay |
Documents & Downloads
Power relay HE 30 A, Solder tag connection
Compact mains isolation relay for direct and alternating current. Outstanding inrush current characteristic and high temperature constancy. Application: Brown goods, consumer electronics, house device technology, office devices, power supplies.
- Warranty: 24 months
- Manufacturer: Panasonic
Comments
Approvals: UL, CSA, TV rating, TÜV, VDE.Frequently bought together
