Panasonic SF4D24 PCB relay 24 V DC 6 A 4 makers, 4 breakers 1 pc(s)
- Item no.: 504857
- Manufacturer no.: SF4D24
- EAN: 2050000154430
Flat poled safety relays with forced contacts. Application: Safety and automation technology, machine controls.
- Warranty: 24 months
- Manufacturer: Panasonic
- Item no.: 504857
- Manufacturer no.: SF4D24
- EAN: 2050000154430
Flat poled safety relays with forced contacts. Application: Safety and automation technology, machine controls.
- Warranty: 24 months
- Manufacturer: Panasonic
Technical data
- Making capacity 20 A
- Breaking capacity 6 A
- Sustained switching capacity 6A
- Max. switching capacity (resistive load) 100,000 switching cycles
| Type | SF4D24 |
|---|---|
| Coil nominal voltage | 24 V DC |
| Min. pick-up voltage | 18 V DC |
| Control mode | monostable, 1 coil |
| R(coil) | 1152 Ω |
| Contact type | 4 makers , 4 breakers |
| Contact material | AgSnO2 + Au |
| Switching voltage (max.) | 400 V DC , 400 V AC |
| Switching current (max.) | 6 A |

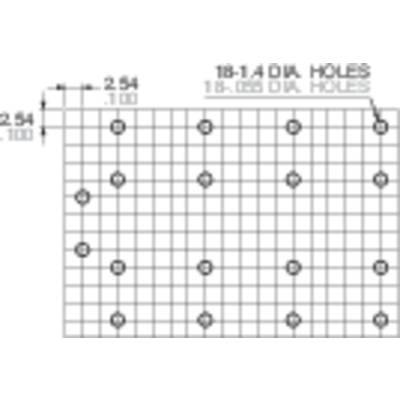

| Connection | Solder pins |
| Durability | 1 x 107 |
|---|---|
| Min. temperature | -40 °C |
| Max. temperature | +70 °C |
| Length | 53.3 mm |
| Width | 33 mm |
| Height | 16.5 mm |
| Dim | (L x W x H) 53.3 x 33 x 16.5 mm |
| Content | 1 pc(s) |
| Type | monostabile |
| IS max. | 6 A |
| Nominal voltage (details) | 24 V DC |
| Switching capacity | Max 6 A/250 V/AC, 3 A/24 V DC |
| Type | SF4D24 |
| Ambient temperature | -40 - +70 °C |
| Min. switching current | (at 10 V/DC) 10 mA |
| Contact type | 4 NO / 4 NC |
| Product type | PCB relay |
Documents & Downloads
Safety relays SF4D 6 A/3 A, Print
Flat poled safety relays with forced contacts. Application: Safety and automation technology, machine controls.
- Warranty: 24 months
- Manufacturer: Panasonic
Comments
Approvals: UL, CSA, SEV, TÜV.Frequently bought together
