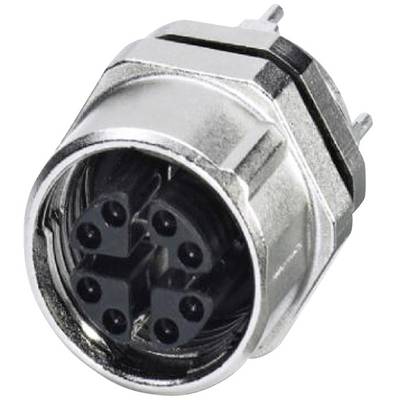

Phoenix Contact 1440669 SACC-DSIV-FS-8CON-L180-10G SCO RJ45 Socket, built-in Silver
EAN:
Part number:
Item no:
Product type
Sensor/actuator built-in connector
Connector type
Socket, built-in
Connector standard
RJ45
Connection side A
Customisable
Connection side B
M12 socket, built-in
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
20
-
€ 29.40
3
4% = € 1.27
€ 28.13
Volume discounts vary depending on the seller
You save € 25.40
Number
Minimum order quantity: 20
Multiple: 20
Total (€ 28.13 / piece)
€ 562.60
plus VAT.
Technical specifications
- Behind wall/screw-mounting with PG 9-thread
- Straight solder connection
- Packaging type
Piece
- Type
SACC-DSIV-FS-8CON-L180-10G SCO
- Product type
Sensor/actuator built-in connector
- Connector type
Socket, built-in
- Connector standard
RJ45
- Connection side A
Customisable
- Connection side B
M12 socket, built-in
- No. of pins
8P8C
- Nominal voltage
50 V AC
- Nominal current
0.50 A
- Nominal current - rounded value
500 mA
- Connection
Soldering
- Factory colour
Silver
- Thread type connection side
M12
- Thread type (wiring and installation)
PG9
- Contact material
Copper alloy
- Contact surface
Gold on nickel
- Sensor/actuator connectivity fittings
PG9 rear panel fitting
- max. cross section
0.14 mm²
IP67
- Features
Ethernet
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Seal type
Screw-on
- Manufacturer part #
1440669
- Content
1 pc(s)
- Cable diameter (details)
4 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 734328 Phoenix Contact 1440669 SACC-DSIV-FS-8CON-L180-10G SCO RJ45 Socket, built-in Silver
User & Safety Instructions
User & Safety Instructions 734328 Phoenix Contact 1440669 SACC-DSIV-FS-8CON-L180-10G SCO RJ45 Socket, built-in Silver
Description
The new CAT 6A connectors are specially designed for the Ethernet transmission with 10 Gbit/s. Compared to the current Fast Ethernet Standard with 100 Mbit/s will be the increasing demands by growing numbers of participants, Dezentralitat, higher data volumes and demanding real-time requirements, without any system break. For PCB mounting.
