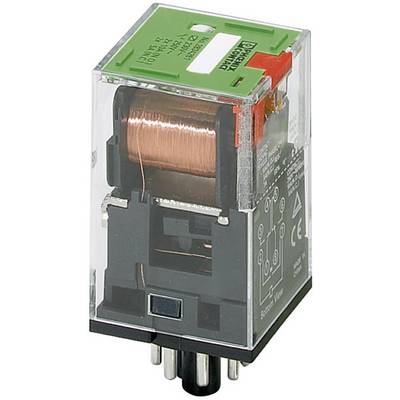

Phoenix Contact REL-OR-230AC/2X21 Plug-in relay 230 V AC 10 A 2 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Coil nominal voltage
230 V AC
Control mode
monostable, 1 coil
Contact type
2 change-overs
Switching voltage (max.)
250 V DC
250 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
5
3% = € 0.43
€ 13.85
10
5% = € 0.72
€ 13.56
50
10% = € 1.43
€ 12.85
100
20% = € 2.86
€ 11.42
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Highlights & Details
Phoenix Contact REL-OR-230AC/2X21 Plug-in relay 230 V AC 10 A 2 change-overs 1 pc(s)
Technical specifications
- IEC 60 664/IEC 60 664 A/DIN VDE 0110.
- Product type
Plug-in relay
- Type
REL-OR-230AC/2X21
- Coil nominal voltage
230 V AC
- Control mode
monostable, 1 coil
- Resistance (coil)
6170 Ω
- Contact type
2 change-overs
- Contact material
Ag
- Switching voltage (max.)
250 V DC
250 V AC
- Switching current (max.)
10 A
- Max. switching capacity
2500 VA
- Connection
Connector
- Dim
- Content
1 pc(s)
- RoHS-compliant
- Nominal voltage (details)
230 V AC
- Nominal current (details)
12 mA
- Test voltage
(50 Hz for 1 min) Coils and contacts 2.5 kV
- Contamination level
3
Documents & Downloads
Datasheet
Datasheet 745561 Phoenix Contact REL-OR-230AC/2X21 Plug-in relay 230 V AC 10 A 2 change-overs 1 pc(s)
User & Safety Instructions
User & Safety Instructions 745561 Phoenix Contact REL-OR-230AC/2X21 Plug-in relay 230 V AC 10 A 2 change-overs 1 pc(s)
Description
Features
- Test button
- Status indicator
- 100% Operating time.
Hints
IEC 60 664/IEC 60 664 A/DIN VDE 0110.
