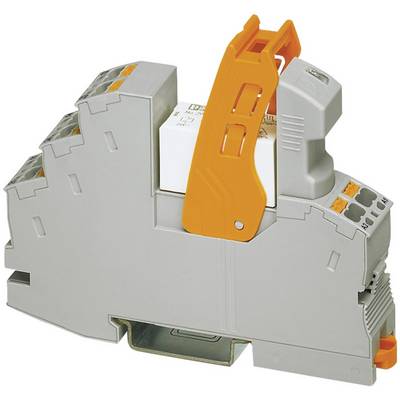

Phoenix Contact RIF-1-RPT-LDP-24DC/1X21 Relay component Nominal voltage: 24 V DC Switching current (max.): 11 A 1 change
EAN:
Part number:
Item no:
Product type
Relay component
Contact type
1 change-over
Nominal voltage
24 V DC
Switching voltage (max.)
250 V DC
250 V AC
Switching current (max.)
11 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Technical specifications
- Product type
Relay component
- Type
RIF-1-RPT-LDP-24DC/1X21
- Connection
Pull spring
- Contact type
1 change-over
- Contact material
AgNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V DC
250 V AC
- Switching current (max.)
11 A
- Max. switching capacity
2750 VA
- Features
+ LED
+ protection diode
+ flyback diode
IP20
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Width
16 mm
- Height
93 mm
- Dim
(W x H x D) 16 x 93 x 78 mm
- Content
1 pc(s)
- Weight
0.0650 kg
- Depth
78 mm
0.018 A
16
96 mm
75 mm
FALSE
Polarized
Mono stable
FALSE
Single contact
TRUE
Other
19.2-33.6 V
Untreated
IP20
TRUE
DC
0
0
1
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 558649 Phoenix Contact RIF-1-RPT-LDP-24DC/1X21 Relay component Nominal voltage: 24 V DC Switching current (max.): 11 A 1 change
User & Safety Instructions
User & Safety Instructions 558649 Phoenix Contact RIF-1-RPT-LDP-24DC/1X21 Relay component Nominal voltage: 24 V DC Switching current (max.): 11 A 1 change
Description
Pre-assembled relay module with push-in connection.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Relay Sockets
- Power contact relay
- Plug-in display/suppression module
- Retaining bracket.
- This text is machine translated.
