Phoenix Contact RIF-2-RSC-LDP-24DC/2X21 Relay component Nominal voltage: 24 V DC Switching current (max.): 10 A 2 change

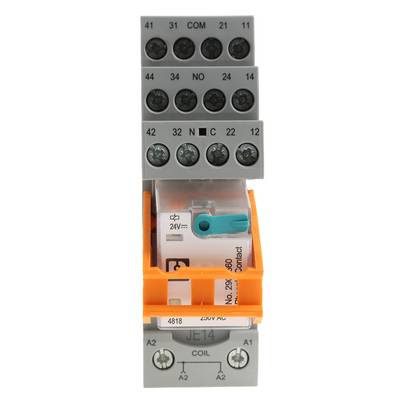

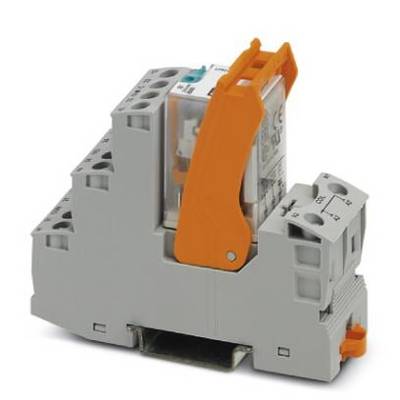

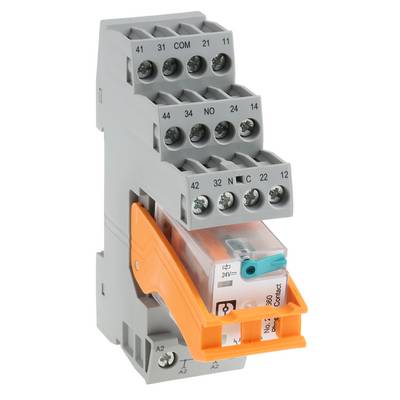

Pre-assembled relay module with screw connection, consisting of: Relay socket, power contact relay and retaining bracket. Contact type: 2 changeover contacts. Input voltage 24 V/DC
This text is machine translated.
- Warranty: 24 months
- Manufacturer: Phoenix Contact
Pre-assembled relay module with screw connection, consisting of: Relay socket, power contact relay and retaining bracket. Contact type: 2 changeover contacts. Input voltage 24 V/DC
This text is machine translated.
- Warranty: 24 months
- Manufacturer: Phoenix Contact

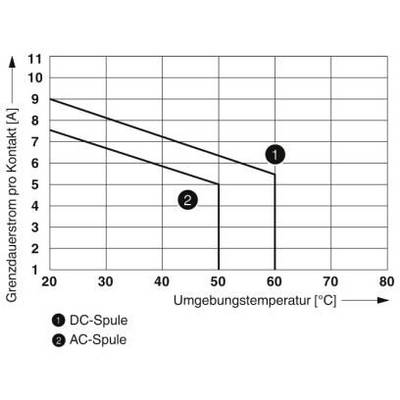

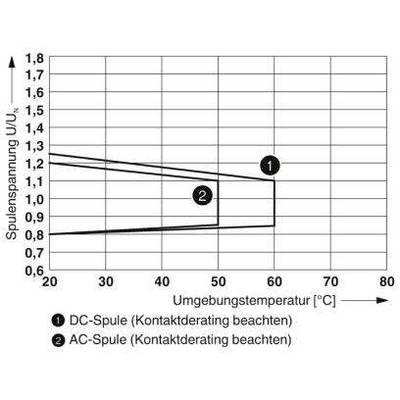

Technical data
- Power loss at rated condition: 1.01 W.
- Maximum switching voltage 250 V AC/DC
- Minimum switching voltage 5 V (at 24 mA)
- Switching current minimum: 5 mA (at 24 V)
- Inrush current maximum 30A (20ms, NO)
- Switch-off power (resistive load) maximum:
- 240 W (AT 24 V DC)
- 124 W (AT 48 V DC)
- 108 W (AT 60 V DC)
- 52 W (AT 110 V DC)
- 48 W (AT 220 V DC)
- 2500 VA (AT 250 V AC)

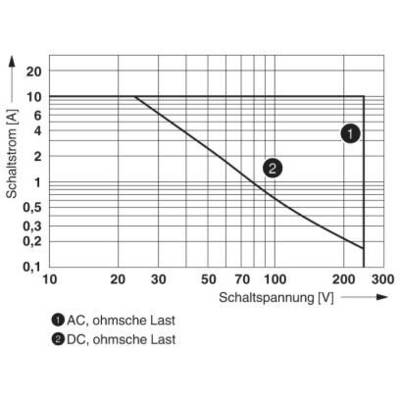

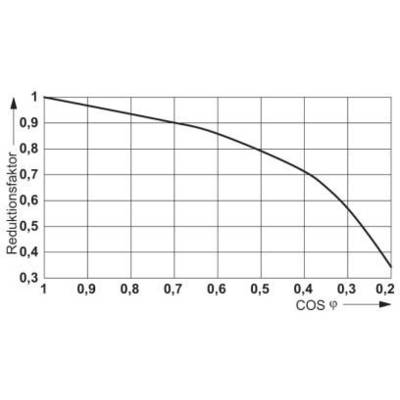

- Switching capacity:
- 2 A (AT 24 V, DC13)
- 0.22 A (AT 120 V, DC13)
- 0.11 A (AT 250 V, DC13)
- 3 A (AT 120 V, AC15)
- 1.5 A (AT 240 V, AC15)
- All mounting positions permitted
- Mounting instructions: Can be aligned without distance
- Wire stripping length: 8 mm
- Conductor cross-section rigid: 0.5 mm² ... 4 mm²
- Conductor cross-section flexible: 0.5 mm² ... 4 mm²
- Conductor cross-section AWG: 20 ... 10 (rigid)
- Rated insulation voltage 250 V AC
- Dimensioning surge voltage: 4 kV
- Insulation: Basic insulation
- Over voltage category III
Type | RIF-2-RSC-LDP-24DC/2X21 |
---|---|
Connection | Screws |
Response time | 13 ms |
Fall time | 14 ms |

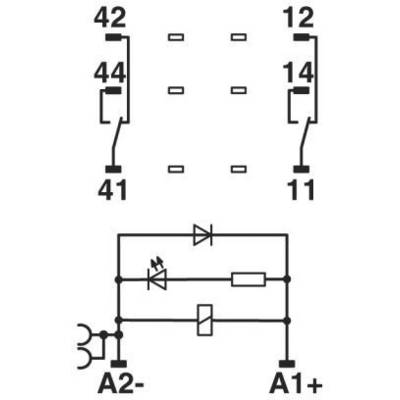

Contact type | 2 change-overs |
Contact material | AgNi |
Nominal voltage | 24 V DC |
Switching voltage (max.) | 250 V DC/AC |
Switching current (max.) | 10 A |

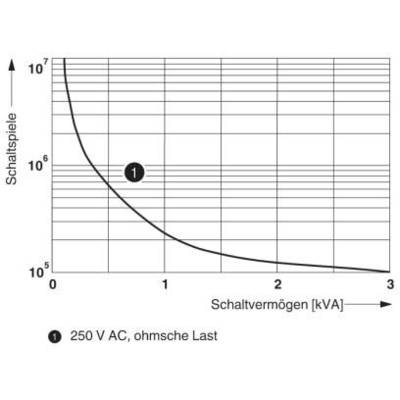

Durability | 2x 10 7 operations |
Features | + LED , + flyback diode |
---|---|
IP rating | IP20 |
Max. temperature | +60 °C |
Min. temperature | -40 °C |
Length | 75 mm |
Width | 27 mm |
Height | 89 mm |
Dim | (L x W x H) 75 x 27 x 89 mm |
Content | 1 pc(s) |
Product type | Relay component |
