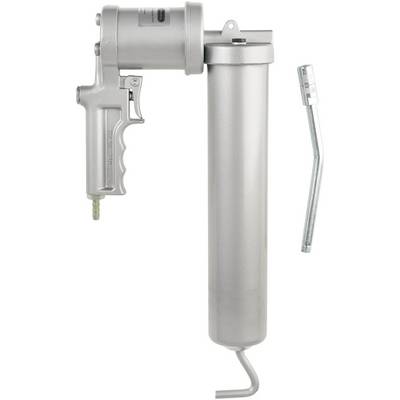

Pressol PRESSOL 18071 Air-operated grease gun 500 cm³ hydraulic
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Air-operated grease gun
- Max. feed rate
0.8 cm³
- Operation type
hydraulic
- Capacity
500 cm³
- Material
Zinc (die-cast)
- Content
1 pc(s)
- Operating pressure
400 bar
- Width
171 mm
- Height
84 mm
- Length
402 mm
Documents & Downloads
Datasheet
Datasheet 1365491 Pressol PRESSOL 18071 Air-operated grease gun 500 cm³ hydraulic
User & Safety Instructions
User & Safety Instructions 1365491 Pressol PRESSOL 18071 Air-operated grease gun 500 cm³ hydraulic
Description
The device is processing fats to NLGI 2, due to strong knurled grip. Performance of the cartridge after 5000 Work Play unchanged, loose lid with clamping piece allows a manual support of the spring force in every position for compression of loose grease or for insertion of the sleeve in damaged cartridges. Pump Piston with high accuracy of fit to the cylinder (no apparent lubrication). Quick exhaust by half a rotation of the grease gun tube. Separate filling and venting valve in the grease gun head. Secure hand grip at the push rod.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Filling nipple (FN), M10 x 1 A
- Nozzle pipe, curved, M10 x 1, 150 mm
- Mouthpiece, 4BA, M10 x 1.
