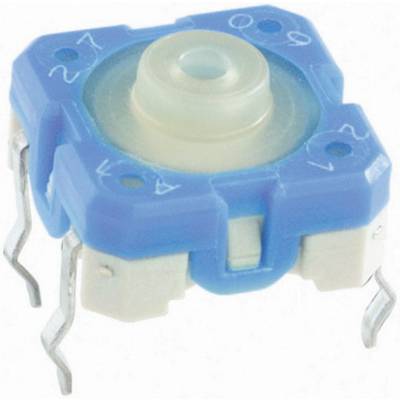

RAFI 1.14.100.501/0000 114100501 Pushbutton 42 V DC/AC 0.1 A 1 x Off/(On) momentary 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Lighting type
None
Switch position
1 x Off/(On)
Contact type
1 maker
Connection
Print
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.51
10
8% = € 0.12
€ 1.39
25
11% = € 0.17
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.51 / piece)
€ 1.51
plus VAT.
Highlights & Details
RAFI 1.14.100.501/0000 114100501 Pushbutton 42 V DC/AC 0.1 A 1 x Off/(On) momentary 1 pc(s)
Our service for you
Technical specifications
- Contact system and mounting quick action contact
- Speed path 0.34 (± 0.1) mm
- Product type
Pushbutton
- Casing/button colour
Blue
- Functions
momentary
- Type
1 Closer
- Lighting type
None
- Switch position
1 x Off/(On)
- Contact type
1 maker
- Contact material
Au
- Connection
Print
- Contact resistance
100 mΩ
- Switching voltage
42 V DC/AC
- Max. switching capacity
1 W
- Switching current (max.)
0.1 A
- Bounce duration
5 ms
- Min. temperature
-40 °C
- Max. temperature
+90 °C
- Electrical lifespan
>106 cycles
- Actuating force
3.3 N
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
114100501
- Switching capacity
1 W max. (resistive load)
- Type
114100501
- Actuating force
(±0.6) 3.3 N
- Connection
Outside pcb connection
- Temperature range
-40 - +90 °C
Documents & Downloads
Datasheet
Datasheet 704000 RAFI 1.14.100.501/0000 114100501 Pushbutton 42 V DC/AC 0.1 A 1 x Off/(On) momentary 1 pc(s)
Description
With the key RACON 8 provides RAFI an extremely reliable switching key with very little space. The buttons may be used singly or in keypads. Suitable for most soldering processes, such as wave, reflow (SMD) and hand soldering.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
