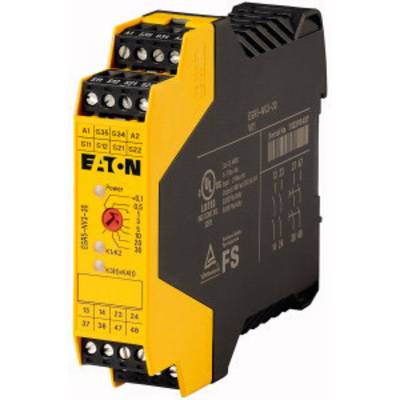

Safety relay ESR5-NV3-30 Eaton (W x H x D) 22.5 x 99 x 114.5 mm 1 pc(s)

  • Item no.: 1973237
  • Manufacturer no.: ESR5-NV3-30
  • EAN: 4015081168453

Safety relay with fall-back delay, for implementing the basic functions emergency stop / emergency stop / protective door / light grid, one or two-channel operation, supply voltage 24VDC, 2 enabling current paths (IEC/EN 60204 Stop category 0), suita…

  • Warranty: 24 months
  • Manufacturer: Eaton
  • Item no.: 1973237
  • Manufacturer no.: ESR5-NV3-30
  • EAN: 4015081168453

Safety relay with fall-back delay, for implementing the basic functions emergency stop / emergency stop / protective door / light grid, one or two-channel operation, supply voltage 24VDC, 2 enabling current paths (IEC/EN 60204 Stop category 0), suita…

  • Warranty: 24 months
  • Manufacturer: Eaton
  • Stripped length: 7 mm
  • Wire cross-sections 24 - 12 AWG
  • Response time: For UE in automatic mode: type. 150bei UE in manual mode: type. 150 ms
  • Probability of failure per hour [PFHd]: 18 x 10-10
  • Output fuse 6 GL/GG
  • Evaluation of the inputs: One and two-channel
  • Rated insulation voltage [UI] 250 V AC
  • Rated surge voltage resistance [Uimp]: 4000 V AC
  • Touch protection with vertical actuation from the front (EN 50274): finger and hand-back protection
  • Operation: Single-channel, two-channel
  • Operating conditions: 2000 m.
  • Inrush current: Min - max0.025 - 6 A.
  • Release current paths according to EN 60204-1 Stop category 0: 2
  • Weighs 0.20 kg.
  • Short-circuit protection for output circuits, external: Fuse 10 A GL/GG NEOZED
  • Short circuit current 0.1 A
  • Maximum permissible total line resistance (input and start circuits for UN) [RL]: 500 Ω
  • Maximum power-off 23 W
  • Signaling current paths: 0
  • Minimum switching power 0.4 W.
  • Mounting: DIN rail IEC/EN 60715, 35 mm
  • SQUARE TOTAL CURRENT: 55 A2 (ITH2 = I12 + I22 + I32 + I42 + I52) A2
  • Switching frequency max. 0.5 Hz
  • Safety characteristics: Cat 4
  • Status display: Green LED
  • Power dissipation [P]: 7.8 W.
  • Permissible range: 0.85 - 1.1 x UE
  • Max. Ohmic resistance of wire [R]: ≦ 500 Ω
  • Overvoltage category/pollution degree III/2
Type ESR5-NV3-30
Connector Screw-fit
Min. operating voltage 24 V
Max. operating voltage 230 V
Operating voltage 24 - 230 V
Response time 150 ms
Switching current (max.) 3 A
IP rating
IP20
Operating temperature (min.) -20 °C
Max. operating temperature +45 °C
Depth 114.5 mm
Width 22.5 mm
Height 99 mm
Dim (W x H x D) 22.5 x 99 x 114.5 mm
Content 1 pc(s)
Product type Safety relay

Technical data

  • Stripped length: 7 mm
  • Wire cross-sections 24 - 12 AWG
  • Response time: For UE in automatic mode: type. 150bei UE in manual mode: type. 150 ms
  • Probability of failure per hour [PFHd]: 18 x 10-10
  • Output fuse 6 GL/GG
  • Evaluation of the inputs: One and two-channel
  • Rated insulation voltage [UI] 250 V AC
  • Rated surge voltage resistance [Uimp]: 4000 V AC
  • Touch protection with vertical actuation from the front (EN 50274): finger and hand-back protection
  • Operation: Single-channel, two-channel
  • Operating conditions: 2000 m.
  • Inrush current: Min - max0.025 - 6 A.
  • Release current paths according to EN 60204-1 Stop category 0: 2
  • Weighs 0.20 kg.
  • Short-circuit protection for output circuits, external: Fuse 10 A GL/GG NEOZED
  • Short circuit current 0.1 A
  • Maximum permissible total line resistance (input and start circuits for UN) [RL]: 500 Ω
  • Maximum power-off 23 W
  • Signaling current paths: 0
  • Minimum switching power 0.4 W.
  • Mounting: DIN rail IEC/EN 60715, 35 mm
  • SQUARE TOTAL CURRENT: 55 A2 (ITH2 = I12 + I22 + I32 + I42 + I52) A2
  • Switching frequency max. 0.5 Hz
  • Safety characteristics: Cat 4
  • Status display: Green LED
  • Power dissipation [P]: 7.8 W.
  • Permissible range: 0.85 - 1.1 x UE
  • Max. Ohmic resistance of wire [R]: ≦ 500 Ω
  • Overvoltage category/pollution degree III/2
Type ESR5-NV3-30
Connector Screw-fit
Min. operating voltage 24 V
Max. operating voltage 230 V
Operating voltage 24 - 230 V
Response time 150 ms
Switching current (max.) 3 A
IP rating
IP20
Operating temperature (min.) -20 °C
Max. operating temperature +45 °C
