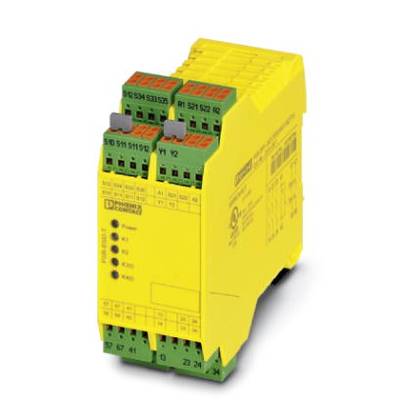

Safety relays PSR-SPP- 24DC/ESD/5X1/1X2/T10S 2981509 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Safety relay
Connector
Spring force connector
Operating voltage
24 V DC
Type
PSR-SPP- 24DC/ESD/5X1/1X2/T10S
Contact type
5 makers
1 breaker
Datasheet (PDF)
Number
Total (€ 373.95 / piece)
€ 373.95
plus VAT.
14-day return policy included
Technical specifications
- Product type
Safety relay
- Type
PSR-SPP- 24DC/ESD/5X1/1X2/T10S
- Connector
Spring force connector
- Operating voltage
24 V DC
- Contact type
5 makers
1 breaker
- Performance level
PL e
- Safety integrity level
SIL 3
- Safety rating
4
- Depth
114.5 mm
- Width
45 mm
- Height
112 mm
- Dim
(W x H x D) 45 x 112 x 114.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 706706 Safety relays PSR-SPP- 24DC/ESD/5X1/1X2/T10S 2981509 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 706706 Safety relays PSR-SPP- 24DC/ESD/5X1/1X2/T10S 2981509 Phoenix Contact
Description
Safety relay for emergency stop and safety door monitoring up to SIL 3 or Cat. 4, PL e according to EN ISO 13849, automatic or manual activation, 3 N/O contacts, 1 N/C contact, 2 N/O contacts with fixed 10.0 s dropout delay, plug-in spring-cage connection terminal blocks
