Serial device SAFE 5.1 CM Manufactory Operating voltage: 24 V DC, 24 V AC 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Serial device
Operating voltage
24 V DC
24 V AC
Type
SAFE 5.1
Contact type
2 makers
Switching voltage (max.)
24 V DC
230 V AC
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
Highlights & Details

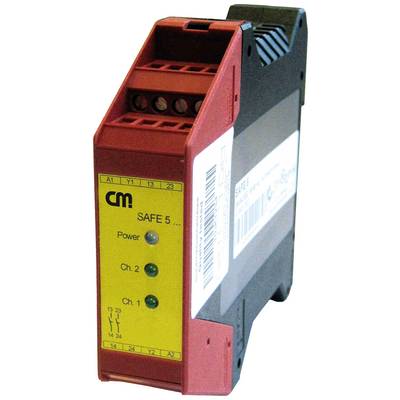

Emergency stop safety relay and protective door monitor
- Optical switching status display
- Power control by LED
- Without monitoring the start button (automatic start)
Technical specifications
- Safety category: 3
- Performance level: PL e
- Type (general): Safety relay
- Certification: CE/TUV/UL/cUL
- Product type
Serial device
- Type
SAFE 5.1
- Operating voltage
24 V DC
24 V AC
- Contact type
2 makers
- Switching voltage (max.)
24 V DC
230 V AC
- Switching current (max.)
6 A
- Max. switching capacity
1500 VA
- Operating temperature (min.)
-25 °C
- Operating temperature (max.)
+55 °C
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2226785 Serial device SAFE 5.1 CM Manufactory Operating voltage: 24 V DC, 24 V AC 2 makers 1 pc(s)
Conformity certificate
Conformity certificate 2226785 Serial device SAFE 5.1 CM Manufactory Operating voltage: 24 V DC, 24 V AC 2 makers 1 pc(s)
Description
The safety relay is used in one or two-channel switching technology for emergency stop switches and one or two-channel switching technology with limit switches for sliding protection grids.
