Shuttle DS10U Mini PC Intel 4205U (2 x 1.8 GHz) 8 GB RAM 120 GB SSD
Fanless 1.3 liter industrial PC with Whiskey Lake-U processorThe DS10U series are slim, fanless PCs in a robust metal housing with universal connection options. The soldered Intel "Whiskey Lake-U" processor offers sufficient performance for the playb…
- Warranty: 24 months
- Manufacturer: Shuttle
Fanless 1.3 liter industrial PC with Whiskey Lake-U processorThe DS10U series are slim, fanless PCs in a robust metal housing with universal connection options. The soldered Intel "Whiskey Lake-U" processor offers sufficient performance for the playb…
- Warranty: 24 months
- Manufacturer: Shuttle
Technical data
Product type | Mini PC |
---|---|
CPU series | Intel® Celeron® |
Processor/type | 4205U |
Processor cores (No.) | 2 x |
CPU speed | 1.8 GHz |
CPU cache | 2 MB |
RAM | 8 GB |
RAM type | DDR4 RAM |
Memory clock speed | 2133 MHz |
No. of memory slots | 2 |
RAM / Max. upgrade | 32 GB |
---|---|
No. of graphics cards | 1 |
Graphics card type | Intel UHD Graphics |
Graphics card type | 610 |
SSD size (total) | 120 GB |
SSD 1 type | SSD |
SSD | 120 GB |
SSD connection | SSD SATA III (600 MB/s) |
Hard drive capacity (total) | 0 GB |
Hard drive | 0 GB |
Drive | w/o hard drive |
Mobile internet | WiFi |
No. of DisplayPort | 1 x |
No. of Gigabit LANs | 2 x |
No. of HDMI ports | 1 x |
No. of serial ports | 1 x |
No. of USB 2.0 ports | 4 x |
No. of USB 3.1 (1st gen) | 2 x |
No. of VGA ports | 1 x |
Interfaces | DisplayPort , Gigabit LAN (1 Gbps) , HDMI™ , Card reader , Headphone jack (3.5 mm) , Microphone (3.5 mm jack) , RJ45 , Serial (9-pin) , USB 2.0 , USB 3.2 (Gen 1) , VGA , Wi-Fi 5 (IEEE 802.11 ac/n/g/b/a) |
Supported memory cards | SD , SDHC , SDXC |
Colour | Black |
Width | 165 mm |
Height | 39.5 mm |
Depth | 200 mm |
Weight | 1.5 kg |
PSU power | 65 W |
Operating system (Version) | w/o OS |
CPU | Intel® Celeron® Processor 4205U (1.80 GHz, 2 MB Intel® Cache) |

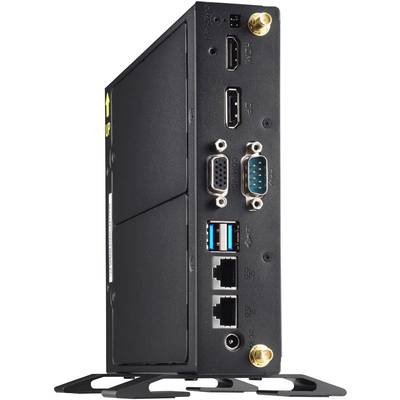

Shuttle Mini PC DS10U
Fanless 1.3 liter industrial PC with Whiskey Lake-U processor
The DS10U series are slim, fanless PCs in a robust metal housing with universal connection options. The soldered Intel "Whiskey Lake-U" processor offers sufficient performance for the playback of 2160p/60 videos in 4K resolution. Two digital connectors for UHD displays and a traditional VGA port are available.
Thanks to completely passive cooling, the system is practically maintenance-free for 24/7 continuous operation and is also very economical.
It is ideal for professional applications such as digital signage, POS, control, office or as a media PC.
This text is machine translated.
Highlights & Details
- Intel® Celeron® Processor 4205U (1.80 GHz, 2 MB Intel® Cache)
- 0 GB 120 GB SSD memory / 8 GB RAM
- Intel UHD Graphics 610 graphics
- w/o OS
Delivery
- PC
- Power supply unit
- User manual.
- Warranty: 24 months
- Manufacturer: Shuttle
