Siemens 3NP11331BC23 Circuit breaker 3-pin 160 A 690 V AC
- Item no.: 1741224
- Manufacturer no.: 3NP11331BC23
- EAN: 4011209700475
circuit-breaker VL 160L very high breaking capacity Icu=100kA / 415 V AC 4 pole, line protection electronic trip unit ETU10 LI In=63A, rated current ir=25-63A, overload iI=1,25to11xin, short circuit N protected with screw connection without auxiliary…
- Warranty: 24 months
- Manufacturer: Siemens
- Item no.: 1741224
- Manufacturer no.: 3NP11331BC23
- EAN: 4011209700475
circuit-breaker VL 160L very high breaking capacity Icu=100kA / 415 V AC 4 pole, line protection electronic trip unit ETU10 LI In=63A, rated current ir=25-63A, overload iI=1,25to11xin, short circuit N protected with screw connection without auxiliary…
- Warranty: 24 months
- Manufacturer: Siemens
Technical data
- Protection class IP20, IP30, IP40
- Surge voltage resistance: 8 kV
- Ambient temperature: -25 °C to +55 °C
- Isolation voltage: 1000 V
- Mechanical life: 2000
- Mounting type: Busbar
- Design of the electrical connection: frame clamp
- Power loss: 51 W
| Type | Masking Level 32/70 mm |
|---|---|

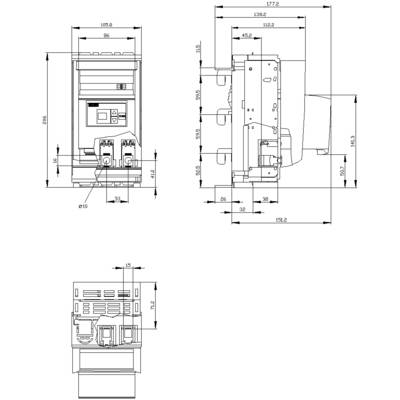

| Dim | (W x H x D) 105.8 x 206.2 x 177.2 mm |
| Content | 1 pc(s) |
| Nominal current | 160 A |
| Nominal current - rounded value | 160 A |
| Depth | 177.2 mm |
| Height | 206.2 mm |
| Width | 105.8 mm |
| Nominal voltage | 690 V AC |
| Number of pins | 3 |
| Product type | Circuit breaker |
|---|
Documents & Downloads
CIRCUIT-BREAKER VL 160L
circuit-breaker VL 160L very high breaking capacity Icu=100kA / 415 V AC 4 pole, line protection electronic trip unit ETU10 LI In=63A, rated current ir=25-63A, overload iI=1,25to11xin, short circuit N protected with screw connection without auxiliary release ETU communication-capable without auxiliary/alarm switch
- Warranty: 24 months
- Manufacturer: Siemens
