Siemens 3NP11431JC23 Circuit breaker 3-pin 250 A 690 V AC

  • Item no.: 1751027
  • Manufacturer no.: 3NP11431JC23
  • EAN: 4011209778863

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH2, 400 A, for assembly and installation on mounting plate, flat terminal, Fuse monitoring: electronic EFM10, Cover level 70 mm

  • Item no.: 1751027
  • Manufacturer no.: 3NP11431JC23
  • EAN: 4011209778863

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH2, 400 A, for assembly and installation on mounting plate, flat terminal, Fuse monitoring: electronic EFM10, Cover level 70 mm

  • Protection class IP20, IP30, IP40
  • Surge voltage resistance: 8 kV
  • Ambient temperature: -25 °C to +55 °C
  • Isolation voltage: 1000 V
  • Mechanical life: 1600
  • Mounting type: Busbar
  • Design of the electrical connection: frame clamp
  • Power loss: 93 W
Type Masking Level 32/70 mm
Content 1 pc(s)

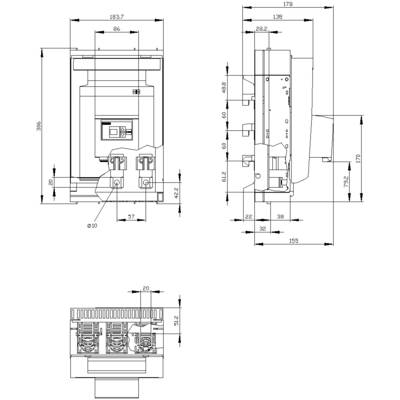

Depth 172.5 mm
Height 306 mm
Width 183.7 mm
Nominal current 250 A
Nominal voltage 690 V AC
Number of pins 3
Product type Circuit breaker

Technical data

  • Protection class IP20, IP30, IP40
  • Surge voltage resistance: 8 kV
  • Ambient temperature: -25 °C to +55 °C
  • Isolation voltage: 1000 V
  • Mechanical life: 1600
  • Mounting type: Busbar
  • Design of the electrical connection: frame clamp
  • Power loss: 93 W
Type Masking Level 32/70 mm
Content 1 pc(s)
Depth 172.5 mm
Height 306 mm
Width 183.7 mm
Nominal current 250 A
Nominal voltage 690 V AC
Number of pins 3
Product type Circuit breaker
