Buy Siemens 3RA2210-1HD15-2AP0 3RA22101HD152AP0 Feeder terminal Motor power at 400 V 3 kW 690 V Nominal current 6.5 A

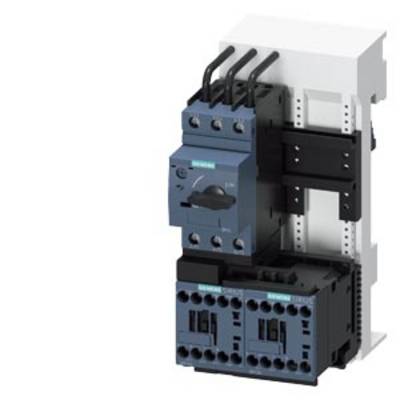

Industrial protection switching system consisting of a power circuit breaker and two downstream contactors, mounted on a DIN rail.

Image similar

An electrical control cabinet with an open door reveals complex wiring and components. Through a rain-streaked window, an industrial 3D printer can be seen blurrily.

'Assembly Kit RS for Reversing Operation and Busbar Technology' shows the structure and components for switchgear of the S00/S0 series.

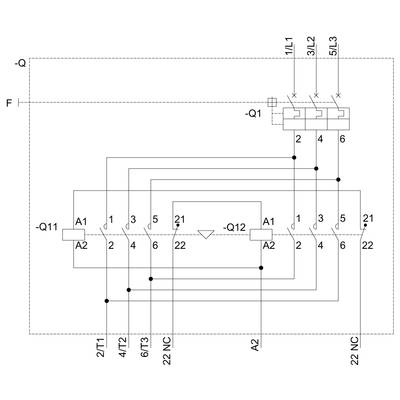

Diagram of a circuit plan with a priority switching arrangement. Contains switches 'Q1' and 'Q11', with labelled connection points and interconnections.

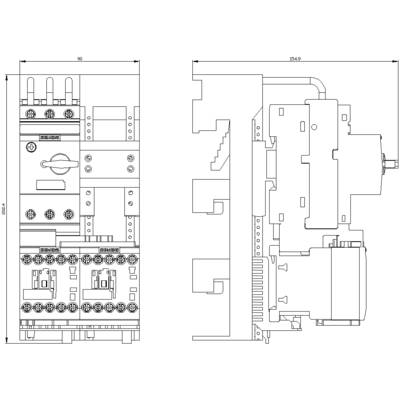

Technical drawing of an electrical switch with front and side views, including dimensional units in millimetres.

Technical drawing of an electrical circuit with switches and wires, showing the layout of protective systems and connections.

1/6

Image similar

Datasheet (PDF)

Dispatches on Fri, 9 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 298.32 / piece)

€ 298.32

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Design of the Electrical Connection: screw terminals.
Size of the load feeder: S00
Operating frequency: 50/60 Hz

Motor voltage: 400 V/50 - 60 Hz

Product type: Feeder terminal

Supply current: 6.5 A

Motor power at 400 V: 3 kW

Nominal voltage: 690 V

Type: Mounting type: For snapping onto 60 mm busbar system

Manufacturer part #: 3RA22101HD152AP0

Nominal current: 6.5 A

Nominal current - rounded value: 6.5 A

Type: 3RA2210-1HD15-2AP0

Motor power at 230V / 400V: 3 kW

Dim: (W x H x D) 90 x 200 x 156 mm

Connection: Screw terminal

Width: 90 mm

Height: 200 mm

Depth: 156 mm

Max. temperature: +60 °C

Min. temperature: -20 °C

: 90

: 204 mm

: 155 mm

: FALSE

: 3 kW

: 1

: 7 A

: 0

: 5.5-8 A

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 230-230 V

: 230-230 V

: IP20

: FALSE

: FALSE

: CLASS 10

: TRUE

: FALSE

: Screw connection

: Screw connection

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: AC

: Other

: 7 A

: 60 °C

: 65000

: 30000

: Other

: Class 1

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1743563 Siemens 3RA2210-1HD15-2AP0 3RA22101HD152AP0 Feeder terminal Motor power at 400 V 3 kW 690 V Nominal current 6.5 A

User & Safety Instructions

User & Safety Instructions 1743563 Siemens 3RA2210-1HD15-2AP0 3RA22101HD152AP0 Feeder terminal Motor power at 400 V 3 kW 690 V Nominal current 6.5 A

Description

Load feeder fuseless, Reversing duty 400 V AC, Size S00 7.00...10.0 A 24 V DC Spring-type terminal for installation on standard mounting rail Type of coordination 1, Iq = 150 kA 1 NC (contactor)
