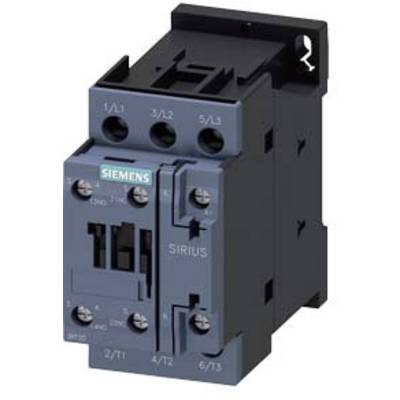

Siemens 3RT2023-1AR60 Electrical contactor 3 makers 4 kW 690 V AC Compatible with (relay brand): Siemens 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Nominal voltage
690 V AC
Power
4 kW
Type
3RT2023-1AR60
Datasheet (PDF)
Number
Total (€ 62.18 / piece)
€ 62.18
plus VAT.
Highlights & Details
LOAD FEEDER FUSELESS
Our service for you
Technical specifications
- Type of voltage: AC
- Conductor cross-section single or multi-strand: 10 mm²
- Conductor cross-section for finely-stranded: 10 mm²
- Product type
Electrical contactor
- Type
3RT2023-1AR60
- Type
S0
- No. of pins
3-pin
- Contact type
3 makers
- Nominal voltage
690 V AC
- Control voltage (min.)
400 V AC
- Control voltage (max.)
440 V AC
- Control voltage range
400 - 440 V AC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
9 A
4 kW
- Compatible with
Siemens
- Compatible with series
Siemens Sirius series
- Mounting type
Snap-in
Screw-fit
- Durability
1000 0000
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
45 mm
- Height
85 mm
- Depth
97 mm
- Dim
(W x H x D) 45 x 85 x 97 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
4 kW
3
1
1
9 A
40 A
Screw connection
AC
8.5 A
3.67749375
Documents & Downloads
Datasheet
Datasheet 1684070 Siemens 3RT2023-1AR60 Electrical contactor 3 makers 4 kW 690 V AC Compatible with (relay brand): Siemens 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1684070 Siemens 3RT2023-1AR60 Electrical contactor 3 makers 4 kW 690 V AC Compatible with (relay brand): Siemens 1 pc(s)
Description
Load feeder fuseless Reversing operation, 400 V AC Size S00 2.8-4 A, 24 V DC Screw terminal Type of coordination 1, Iq = 50 kA !!! Phased-out product !!! Successor is SIRIUS 3RA2 Preferred successor type is 3RA2210-1EA15-2BB4
