Buy Siemens 3RV2411-1GA15 Circuit breaker 1 pc(s) 1 breaker, 1 maker Adjustment range (amperage): 4.5 - 6.3 A Switching volt

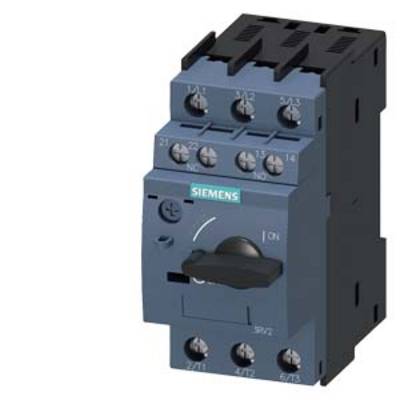

A Siemens electrical circuit breaker with switch and connections. Primarily used for protecting electrical circuits.

Image similar

View into an open machine control panel with cables and switches. In the background, a rain-streaked window reveals blurred machinery.

'Diagram shows mounting accessories for power switch. Components: Transverse/side auxiliary switch, undervoltage and indicator, disconnection and terminal block. Wiring illustrated.'

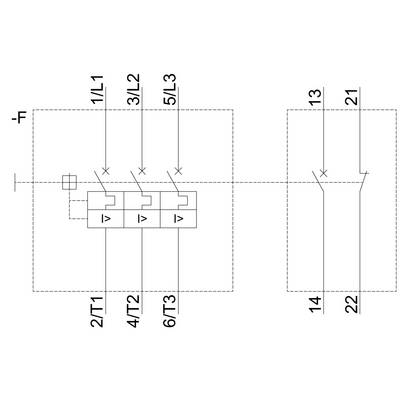

'Wiring diagram of a three-phase installation contactor with three power switches (1/L1, 3/L2, 5/L3) and a coil (13/14, 21/22).'

Siemens 3RV2411-1GA15 Circuit breaker 1 pc(s) 1 breaker, 1 maker Adjustment range (amperage): 4.5 - 6.3 A Switching volt-4

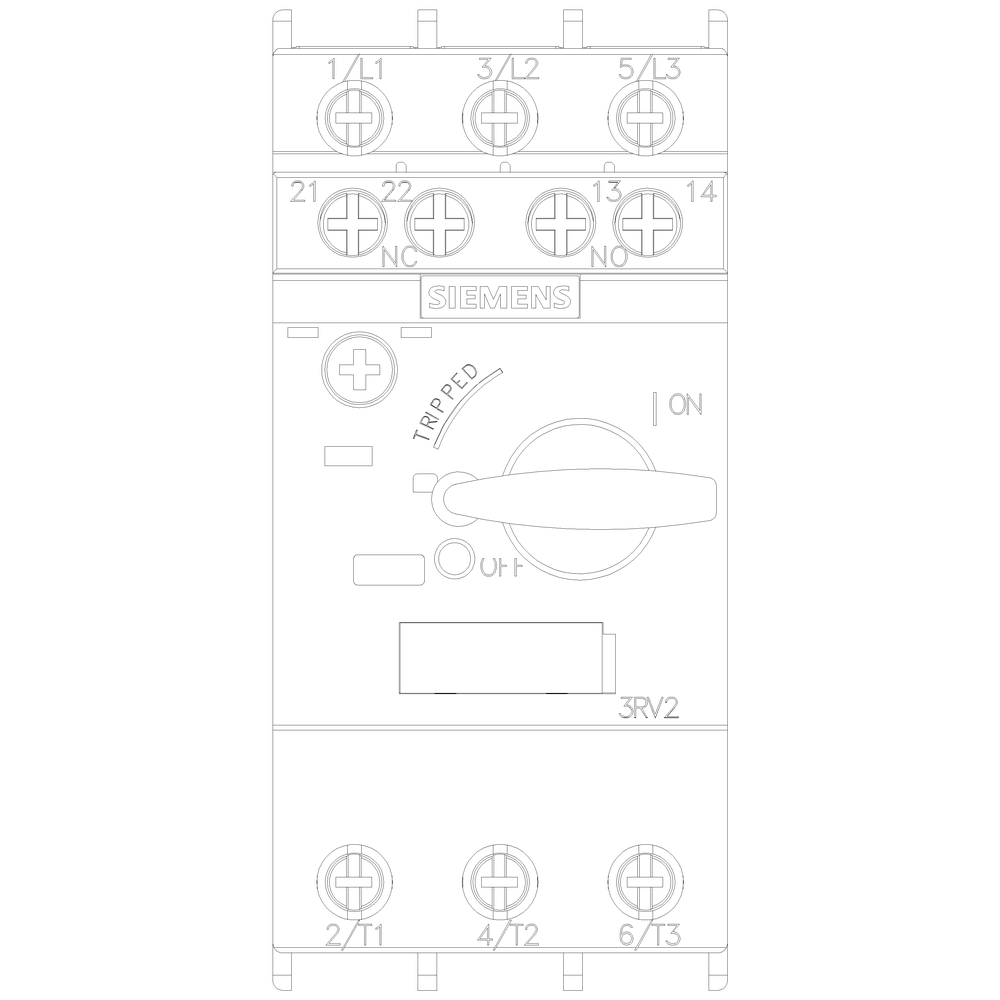

A Siemens switching device with a switch set to 'ON' and labelled 'TRIPPED'. It has connections at the top and bottom.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

6.3 A

Contact type

1 breaker

1 maker

Connection

Screws

Packaging type

Piece

Datasheet (PDF)

Dispatches on Thu, 15 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 113.44 / piece)

€ 113.44

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Design: for transformer protection
Weight: 0,360 kg
Design of the thread of the connection screw: M3
Mechanical life: 100000
Electrical life: 100000
Power loss: 6 W
Mains frequency: 50/60 Hz.

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2411-1GA15

Type: S00

Amperage adjustment range (min.): 4.5 A

Amperage adjustment range (max.): 6.3 A

Adjustment range (amperage): 4.5 - 6.3 A

Current load: 6.3 A

Contact type: 1 breaker
1 maker

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: DIN rail

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

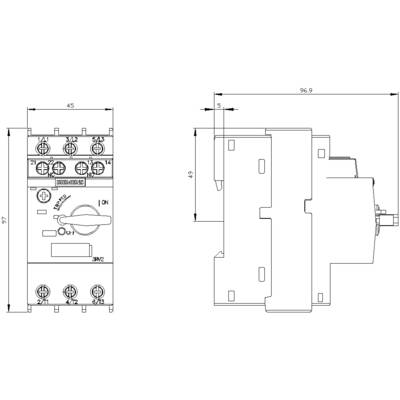

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (W x H x D) 45 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 1

: 1

: 6.3 A

: 3

: 4.5-6.3 A

: 0

: 20-690 V

: IP20

: Other

: FALSE

: Screw connection

: Toggle

: FALSE

: 100 kA

: TRUE

: FALSE

: FALSE

: Built-in device fixed built-in technique

UKCA: yes
