Buy Siemens 4AM34425AV000EA0 Autotransformer 1 x 420 V, 400 V, 380 V 1 x 42 V 100 VA

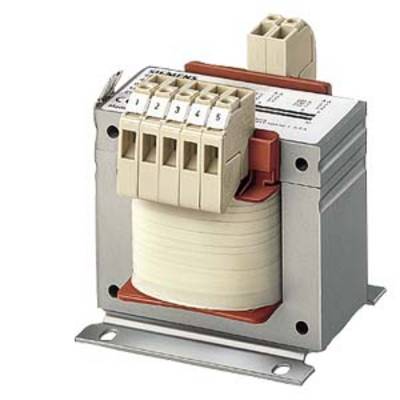

A rectangular electrical transformer with terminals at the top and a winding at the bottom. Suitable for industrial applications.

Image similar

Our service for you

Datasheet (PDF)

Dispatches on Wed, 5 Aug

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€ 96.63

plus VAT.

Report legal concerns

Highlights & Details

TRANSFORMER SITAS PHASES:1

1 x 420 V, 400 V, 380 V
1 x 42 V
100 VA

Technical specifications

Suitability: CE CRUus

Product type: Autotransformer

Output voltage: 42 V

No. of outputs: 1 x

No. of inputs: 1 x

: 100 VA

Input voltage: 420 V
400 V
380 V

Connection: Screws
CEE 7/16 CEE plug

Width: 86 mm

Height: 98 mm

Length: 102 mm

Dim: (L x W x H) 102 x 86 x 98 mm

Output voltage (number x voltage): 1 x 42 V

Design type: EI 84/42

Input voltage (number x voltage): 1 x 420 V, 400 V, 380 V

Frequency: 50-60 Hz

Content: 1 pc(s)

Mounting type: Screw fastening
DIN rail

RoHS-compliant: Yes

Protection class: IP00

Type: 4AM3442-5AV00-0EA0

Max. ambient temperature: +40 °C

Efficiency: 0.86 %

: 86

: 98 mm

: 102 mm

: FALSE

: Other

: IP00

: FALSE

: FALSE

: FALSE

: 100 W

: FALSE

: FALSE

: B

: FALSE

: 7.7 %

: 100 VA

Documents & Downloads

Datasheet

Datasheet 1751671 Siemens 4AM34425AV000EA0 Autotransformer 1 x 420 V, 400 V, 380 V 1 x 42 V 100 VA

User & Safety Instructions

User & Safety Instructions 1751671 Siemens 4AM34425AV000EA0 Autotransformer 1 x 420 V, 400 V, 380 V 1 x 42 V 100 VA

Description

TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):0,08 /0,31 UPRI(V):550-525-500-480-460- 440-415-400-380-230-208 USEC(V):2X115 ISEC(A):0,35-0,70 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP54 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREWS/MOUNTING RAILS EN 61558-2-1, -2-2, -2-4 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER ISOLATION TRANSFORMER
