Buy Siemens 4AM57425LT100FA0 Transformer 1 x 693 V, 660 V, 627 V 1 x 230 V 1000 VA 4.35 A

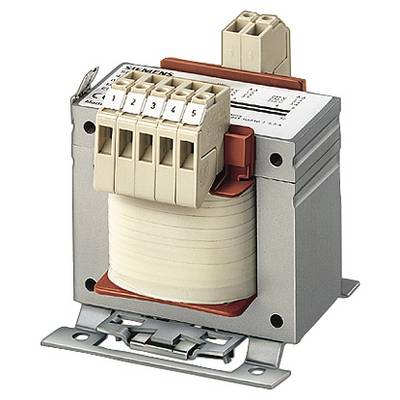

An electrical transformer with six terminal connections on the top, marked with the numbers 1 to 5. Mounted on a metal base.

Image similar

Our service for you

Datasheet (PDF)

Dispatches on Tue, 18 Aug

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 441.18 / piece)

€ 441.18

plus VAT.

Report legal concerns

Highlights & Details

TRANSFORMER SITAS PHASES:1

1 x 693 V, 660 V, 627 V
1 x 230 V
4.35 A
1000 VA

Technical specifications

Proof of Suitability: CE

Product type: Transformer

Output voltage: 230 V

Output current: 4.35 A

No. of outputs: 1 x

No. of inputs: 1 x

: 1000 VA

Input voltage: 693 V
660 V
627 V

Connection: Screws
CEE 7/16 CEE plug

Width: 152 mm

Height: 144 mm

Length: 132 mm

Dim: (L x W x H) 132 x 152 x 144 mm

Output voltage (number x voltage): 1 x 230 V

Design type: EI 150/90

Input voltage (number x voltage): 1 x 693 V, 660 V, 627 V

Frequency: 50-60 Hz

Content: 1 pc(s)

Insulation class: T 40/B

Mounting type: Screw fastening

Test mark: CE

RoHS-compliant: Yes

Protection class: IP00

Type: 4AM5742-5LT10-0FA0

Max. ambient temperature: +40 °C

Min. ambient temperature: 40 °C

Efficiency: 0.93 %

: 152

: 144 mm

: 132 mm

: Other

: IP00

: FALSE

: 1000 W

: FALSE

: FALSE

: B

: FALSE

Documents & Downloads

Datasheet

Datasheet 1754182 Siemens 4AM57425LT100FA0 Transformer 1 x 693 V, 660 V, 627 V 1 x 230 V 1000 VA 4.35 A

User & Safety Instructions

User & Safety Instructions 1754182 Siemens 4AM57425LT100FA0 Transformer 1 x 693 V, 660 V, 627 V 1 x 230 V 1000 VA 4.35 A

Description

TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):1 /5 UPRI(V):660+/-5% USEC(V):230 ISEC(A):4,35 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREW EN 61558-2-1, -2-2, -2-4 CONTROL CIRCUIT TRANSFORMER ISOLATION TRANSFORMER
