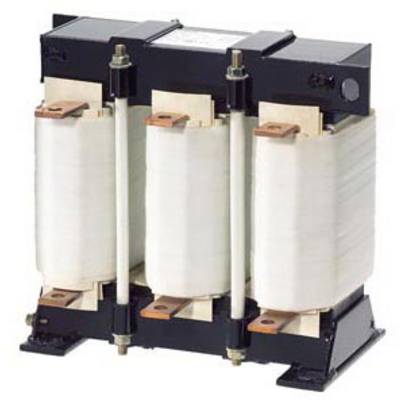

Siemens 4EU27521UB000AA0 4EU2752-1UB00-0AA0 Line choke 3-phase 0.176 mH 160 A 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Line choke
Inductance (L)
0.176 mH
Max. temperature
40 °C
Features
3-phase
Datasheet (PDF)
Number
Total (€ 1,726.89 / piece)
€ 1,726.89
plus VAT.
Highlights & Details
COM CHK 3AC500V 50HZ 315A UK4%
Our service for you
Technical specifications
- Protection class IP: IP 00
- Design of electrical connection / on the input: flat connector
- Phase number/of the input voltage: 3
- Packaging type
Piece
- Product type
Line choke
- Features
3-phase
- Inductance (L)
0.176 mH
- Nominal voltage
480 V
- Nominal current
160 A
- Max. temperature
40 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
4EU2752-1UB00-0AA0
IP00
FALSE
TRUE
FALSE
TRUE
TRUE
0.176 mH
480 V
3
4 %
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1700192 Siemens 4EU27521UB000AA0 4EU2752-1UB00-0AA0 Line choke 3-phase 0.176 mH 160 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1700192 Siemens 4EU27521UB000AA0 4EU2752-1UB00-0AA0 Line choke 3-phase 0.176 mH 160 A 1 pc(s) Piece
Description
COMMUTATING CHOKE FOR CONVERTER PHASES:3 UN1(V):500 ITHMAX 1(A) / F1(HZ):315 /50 I LN (A):283,5 UK(%):4 LN(MH):0,0875 TA/ISOKL:40 /H IP00 TYPE OF TERMINALS:FLAT-TYPE TERMINAL EN 61558-2-20 CHOKE
