Siemens 5SV33163 5SV3316-3 RCCB F 63 A 0.03 A 230 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
2
Release characteristics
F
Differential current rating
0.03 A
Nominal current - rounded value
63 A
Datasheet (PDF)
Number
Total (€ 306.72 / piece)
€ 306.72
plus VAT.
Technical specifications
- Mechanical life (Cycles): 10000
- IP20, for distributor installation, with the connected conductors
- Product type
RCCB
- Number of pins
2
- Release characteristics
F
- Differential current rating
0.03 A
- Nominal current
63 A
- Nominal current - rounded value
63 A

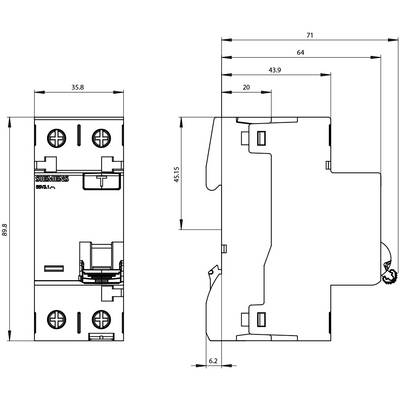

- Dim
(W x H x D) 36 x 90 x 70 mm
- Switch-off capacity
0.8 kA
- Content
1 pc(s)
- Nominal voltage
230 V
- Width
36 mm
- Height
90 mm
- Depth
70 mm
- RoHS-compliant
Yes
DIN rail
AC
70 mm
63 A
230 V
2000 V
2
0.03 A
F
FALSE
10 kA
3 kA
1
2
2
TRUE
7035
5.3 W
50 Hz
IP20
TRUE
TRUE
6
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1731786 Siemens 5SV33163 5SV3316-3 RCCB F 63 A 0.03 A 230 V
Datasheet 1731786 Siemens 5SV33163 5SV3316-3 RCCB F 63 A 0.03 A 230 V
User & Safety Instructions
User & Safety Instructions 1731786 Siemens 5SV33163 5SV3316-3 RCCB F 63 A 0.03 A 230 V
