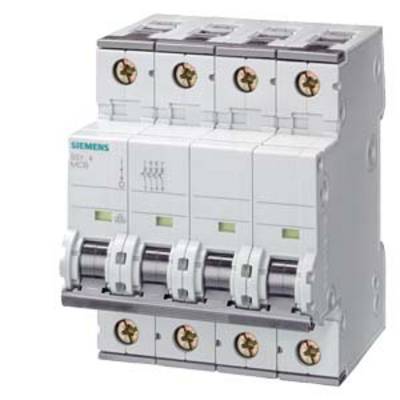

Siemens 5SY54107 Circuit breaker 10 A 230 V, 400 V

  • Item no.: 1753781
  • Manufacturer no.: 5SY54107
  • EAN: 4001869405209

Signal cable pre-assembled for absolute encoder EnDat integrated into the motor 3x (2x0.14) C+4x 0.14+2x0.5 +4x 0.22 C SPEED-CONNECT connector M23 MOTION-CONNECT 800PLUS trailable, UL/CSA, DESINA Dmax=9.8 mm Length (m)= TYPE: 6FX8002-2EQ31 LENGTH (M)…

Full description
  • Item no.: 1753781
  • Manufacturer no.: 5SY54107
  • EAN: 4001869405209

Signal cable pre-assembled for absolute encoder EnDat integrated into the motor 3x (2x0.14) C+4x 0.14+2x0.5 +4x 0.22 C SPEED-CONNECT connector M23 MOTION-CONNECT 800PLUS trailable, UL/CSA, DESINA Dmax=9.8 mm Length (m)= TYPE: 6FX8002-2EQ31 LENGTH (M)…

Full description
Technical data Description Downloads (10) Write New Review
  • IP20, with the connected conductors
Colour Grey
Dim (W x H x D) 72 x 90 x 76 mm
Content 1 pc(s)
Depth 76 mm
Height 90 mm
Width 72 mm
Compatible with (details) SENTRON
Nominal current - rounded value 10 A
Nominal current 10 A
Nominal voltage 230 V , 400 V
Switch-off capacity 10 kA
Number of pins 4
Release characteristics C
Operating voltage 440 V
Product type Circuit breaker

Technical data

  • IP20, with the connected conductors
Colour Grey
Dim (W x H x D) 72 x 90 x 76 mm
Content 1 pc(s)
Depth 76 mm
Height 90 mm
Width 72 mm
Compatible with (details) SENTRON
Nominal current - rounded value 10 A
Nominal current 10 A
Nominal voltage 230 V , 400 V
