Siemens 6ES76470BA000YA2 6ES7647-0BA00-0YA2 Gateway Gateway 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 331.93 / piece)
€ 331.93
plus VAT.

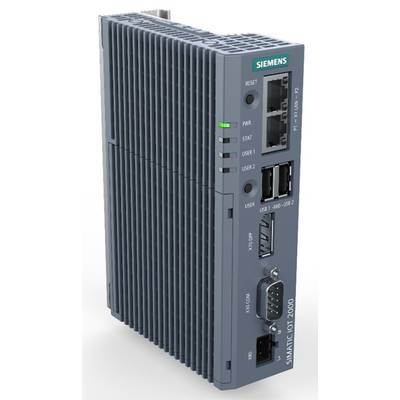

SIMATIC IOT IOT2050
Highlights & Details
- Texas Instruments AM6528 SoC (System on Chip)GB (DDR4)ARDUINO Shield Interface (UNO Rev3 compatible)Mini PCIe x1 1 slot, full sizeDisplayPort;
Technical specifications
- Graphic: Display port
- 2 GB (DDR4) main memory
- Processor: Texas Instruments AM6528 SoC (System on Chip)
- Slots for extensions: ARDUINO Shield Interface (UNO Rev3 compatible) miniPCIe x1 1 slot, full size
- Micro SD: Slot for 1x MicroSD card, (not included)
- Ethernet: 2x Ethernet Gigabit (IE/PN), RJ45
- USB 2x USB 2.0
- Serial interface: 1x COM; adjustable (RS232/485)
- Time function: Battery-buffered real-time clock (battery not included in delivery
- Weight: approx. 0.35 kg
- Product type
Gateway
- Interfaces
Gateway
- Type
6ES7647-0BA00-0YA2
- Operating voltage
24 V DC
- Max. operating temperature
+50 °C
- Min. operating temperature
0 °C
- Operating voltage
DC 12 TO 24 V
- Operating temperature
0 up to +50 °C
- Dim
(W x H) 142 mm x 100 mm
- Height
100 mm
- Width
142 mm
- Manufacturer part #
6ES76470BA000YA2
37
142 mm
100 mm
FALSE
FALSE
2
1
1
1
0
2
0
0
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
1000 MB
FALSE
0
0
0
TRUE
Box
IP20
FALSE
FALSE
2
0
FALSE
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
1
1
Documents & Downloads
Datasheet
Datasheet 2258829 Siemens 6ES76470BA000YA2 6ES7647-0BA00-0YA2 Gateway Gateway 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2258829 Siemens 6ES76470BA000YA2 6ES7647-0BA00-0YA2 Gateway Gateway 24 V DC 1 pc(s)
Description
SIMATIC IOT2050, 2x GBit Ethernet RJ45, Display Port, 2x USB2.0, SD CARD slot, DC 24V Industrial power supply The SIMATIC IOT2050 is the reliable and open platform for the collection, processing and transmission of data directly in the production environment. Ideal is ideal for use as a gateway between the cloud or the company's own IT layer and production. The openness of the system with regard to the support of various communication protocols and programming in high-level languages enables tailor-made solutions.
