Signal Construct SWZU08024A LED indicator light Red 24 V DC/AC Tray
LED indicator light with internal reflector.Front-side protected according to IP67 imBuilt-in condition. Casing: Metal casing bright chrome-platedWith thread M8x0.75mmMounting type: Screw fixingTightening torque: 40 CN·mInstallation opening: Ø8+0.2 m…
LED indicator light with internal reflector.Front-side protected according to IP67 imBuilt-in condition. Casing: Metal casing bright chrome-platedWith thread M8x0.75mmMounting type: Screw fixingTightening torque: 40 CN·mInstallation opening: Ø8+0.2 m…
LED-signal lamp Ø8mm IP67Internal reflector head cylindrical
LED indicator light with internal reflector.
Front-side protected according to IP67 im
Built-in condition. Casing: Metal casing bright chrome-plated

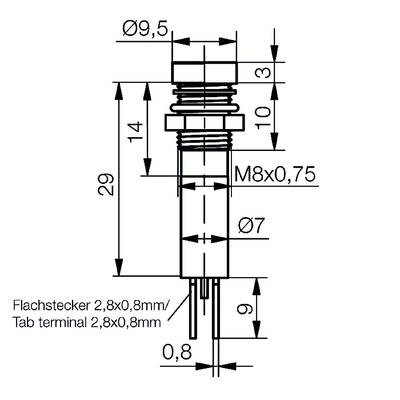

With thread M8x0.75mm
Mounting type: Screw fixing
Tightening torque: 40 CN·m
Installation opening: Ø8+0.2 mm
Protection class according to DIN EN 60529: IP67 (front side)
Connection: 2x flat plug 2.8x0.8 mm
Soldering temperature 250°/3 sec.
OPERATING VOLTAGE 12/14V, 24/28V DC(AC)
The current consumption/brightness for alternating
voltage is about 50% compared to DC operation
reduced.
Scope of delivery: Lamp with lower ring,
Sealing washer and fixing nut
This text is machine translated.
Delivery
- Incl. attachment material
