SpeaKa Professional DH-1500 TV ceiling mount 43,2 cm (17") - 94,0 cm (37") Swivelling, Height-adjustable Locking mechani
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 18.48 / piece)
€ 39.49
-53 %
€ 18.48
plus VAT.
Highlights & Details
SpeaKa Professional TV ceiling bracket 43 cm (17") 94 cm (37") swivelling, 20 kg
- Holder type: Swivelling, Height-adjustable
- Supports all VESA standards up to 200 x 200 mm
- Suitable for displays sized (range): 43,2 cm (17") - 94,0 cm (37")
- Load capacity (max.) 20 kg
- Ideal for pitched roofs and ceilings
Technical specifications
- Product type
TV ceiling mount
- Suitable for
43,2 cm (17")
45,7 cm (18")
48,3 cm (19")
50,8 cm (20")
54,6 cm (21,5")
55,9 cm (22")
58,4 cm (23")
59,9 cm (23,6")
61 cm (24")
63,5 cm (25")
Show more
- Suitable for
43,2 cm (17") - 94,0 cm (37")
- Holder type
Swivelling
Height-adjustable
- Features
Locking mechanism
- Max. load capacity
20 kg
No
75 x 75 mm
100 x 100 mm
200 x 100 mm
200 x 200 mm
- Rotation
0°
- Tilt range (bottom)
-90°
- Tilt range (top)
+30°
- Swivel range (left)
50°
- Swivel range (right)
50°
- Min. distance to floor/ceiling
15 cm
- Max. distance to floor/ceiling
29 cm
- Factory colour
Black
Silver
- Material (details)
Aluminium/Steel
- Weight
1.5 kg
Documents & Downloads
Datasheet
Datasheet 629563 SpeaKa Professional DH-1500 TV ceiling mount 43,2 cm (17") - 94,0 cm (37") Swivelling, Height-adjustable Locking mechani
User & Safety Instructions
User & Safety Instructions 629563 SpeaKa Professional DH-1500 TV ceiling mount 43,2 cm (17") - 94,0 cm (37") Swivelling, Height-adjustable Locking mechani
Description

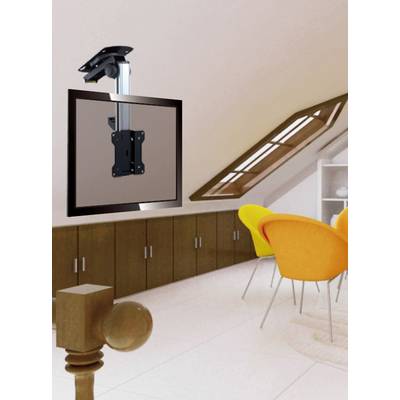

Attic flats and bedrooms are the definitely top of the list when it comes to wall-mounting TV sets. Whether it's pitched roofs or ceilings, these tv brackets are easy to fit. With the help of the locking mechanism, the TV-set can be safely folded directly at the ceiling, if required – this creates space, especially in cramped spaces. The ceiling distance can be set variably, for the perfect viewing angle on the TV set.
This text is machine translated.
This text is machine translated.
Features
- Ceiling distance min.: 150 mm (top up to the middle of the VESA-recording)
- Ceiling distance max.: 290 mm (top up to the middle of the VESA-recording)
- Locking mechanism: Opens the TV set on the ceiling, a
Scope of delivery
- Ceiling mount
- 4 x screws M4 x 14
- 4 x screws M5 x 14
- 4 x screws M6 x 14
- 4 x screws M8 x 20
- 4x D5 washer
- 4x D8 washer
- 8x short
- 2 x Allen keys
- 4x ST6.3x55
- 4x anchor bolt
- 2 x washers WASHERS D6
- User manual.
