Stabila LAX 400, 6-pcs Multi-line laser Self-levelling Range (max.): 20 m
EAN:
Part number:
Item no:
Total (€ 634.45 / piece)
€ 684.87
-7 %
€ 634.45
plus VAT.
Technical specifications
- PROFILASS 5.1 EAC221c002
- Operating time 10 h
- Protection class IP54
- Incl. Tripod holder
- Product type
Multi-line laser
- Features
Self-levelling
- Range (max.)
20 m
- Accuracy (+/-)
0.30 mm/m
- Auto-adjustment range (+/-)
4°
- Laser category
2
- Tripod thread mount
5/8"
- Length
11 cm
- Width
8.50 cm
- Height
15.5 cm
- Dim
(L x W x H) 11 x 8.50 x 15.5 cm
- Weight
0.98 kg
Manufacturer's standards (no certificate)
- Type
LAX 400, 6-pcs
- Laser wavelength
635 nm
Description

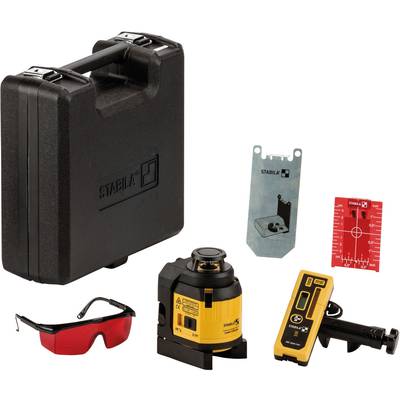

Self-leveling multi-line laser with 360° horizontal line running around for height transmissions, two vertical lines at a 90° angle to each other and a vertical up and down solder for exact layout work. Manual ALIGNMENT: Precise swiveling of the vertical laser lines to a target point. Precise working directly on the bright, fine laser lines. Including line receiver.
This text is machine translated.
This text is machine translated.
Hints
4x AA batteries are required for operation. These are not included in the delivery!
