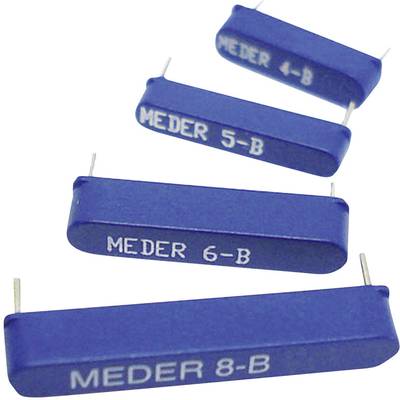

StandexMeder Electronics MK06-8-C Reed switch 1 maker 180 V DC, 180 V AC 0.5 A 10 W

  • Item no.: 1205870
  • Manufacturer no.: 2206080002
  • EAN: 2050002293205

Miniature THT reed sensor for, among other things, on and off, proximity, motion and position detection.

This text is machine translated.

Full description
  • Item no.: 1205870
  • Manufacturer no.: 2206080002
  • EAN: 2050002293205

Miniature THT reed sensor for, among other things, on and off, proximity, motion and position detection.

This text is machine translated.

Full description
Technical data Description Downloads (2) Write New Review
Type MK06-8-C
Water activity (max.) 20
Water activity (min.) 15
Contact type 1 maker
Switching voltage (max.) 180 V DC , 180 V AC
Switching current (max.) 0.5 A
Max. switching capacity 10 W
Connection Solder pins
Max. temperature +85 °C
Min. temperature -20 °C
Width 3.3 mm
Height 4.2 mm
Length 22.32 mm
Dim (L x W x H) 22.32 x 3.3 x 4.2 mm
Water activity 15 - 20
Product type Reed switch

Technical data

Type MK06-8-C
Water activity (max.) 20
Water activity (min.) 15
Contact type 1 maker
Switching voltage (max.) 180 V DC , 180 V AC
Switching current (max.) 0.5 A
Max. switching capacity 10 W
Connection Solder pins
Max. temperature +85 °C
Min. temperature -20 °C
