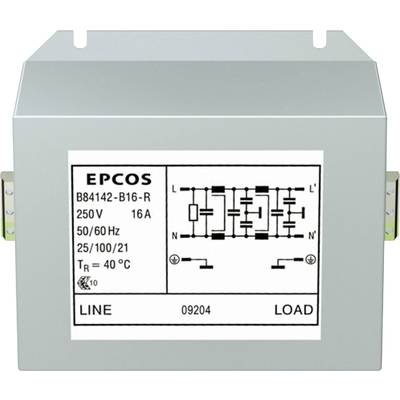

TDK B84142B16R EMI filter 250 V AC 16 A (L x W x H) 121 x 86 x 61 mm 1 pc(s)

  • Item no.: 501743
  • Manufacturer no.: B84142B16R
  • EAN: 2050000146565

Line filter for 1-phase systems. Very high insertion loss.

  • Warranty: 24 months
  • Manufacturer: TDK
  • Item no.: 501743
  • Manufacturer no.: B84142B16R
  • EAN: 2050000146565

Line filter for 1-phase systems. Very high insertion loss.

  • Warranty: 24 months
  • Manufacturer: TDK
  • Nominal current IN: 16 A
Connection Screws
Mounting type Structure
Nominal voltage 250 V AC
Nominal current 16 A
Leakage current 3.5 mA
Type 2 lines
Length 121 mm
Width 86 mm
Height 61 mm
Manufacturer part # B84142B16R
Type B84142B16R
Content 1 pc(s)
Leakage current
Min 3.5 mA
Nominal voltage (details) 250 V, 50/60 Hz
Nominal current (details) 8 - 25 A
RoHS-compliant Yes
Product type EMI filter

Technical data

  • Nominal current IN: 16 A
Connection Screws
Mounting type Structure
Nominal voltage 250 V AC
Nominal current 16 A
Leakage current 3.5 mA
Type 2 lines
Length 121 mm
Width 86 mm
Height 61 mm
Manufacturer part # B84142B16R
