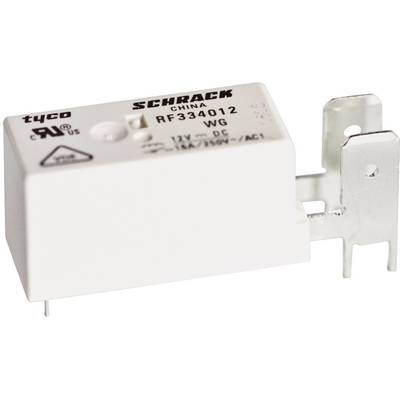

TE Connectivity RFH34012WG PCB relay 12 V DC 16 A 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
12 V DC
Control mode
monostable, 1 coil
Contact type
1 maker
Switching voltage (max.)
400 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
5
6% = € 0.46
€ 7.09
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
14-day return policy included
Highlights & Details
Capacity relay RF with faston connector
Technical specifications
- Product type
PCB relay
- Type
RFH34012WG
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
8.4 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
360 Ω
- Contact type
1 maker
- Contact material
AgNi 90/10
- Switching voltage (max.)
400 V AC
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
- Creepage distance (coil/clips)
8 mm
- Connection
Solder pins
Type C CEE 7/16 plug 6.3 mm
- Min. temperature
-40 °C
- Max. temperature
+105 °C
- Length
40.5 mm
- Width
12.7 mm
- Height
16 mm
- Dim
(L x W x H) 40.5 x 12.7 x 16 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Nominal voltage (details)
12 V DC
- Nominal current (details)
16 A
- Test voltage
4000 Veff
- Switching capacity
4000 VA
- Type
RFH34012WG
- Ambient temperature
-40 - +105 °C
Documents & Downloads
Datasheet
Datasheet 504454 TE Connectivity RFH34012WG PCB relay 12 V DC 16 A 1 maker 1 pc(s)
Description
Applications: Oven controls, electric heaters, power supplies, air conditioners, microwave ovens, hot plates.
Hints
Approvals: VDE, cULus.
