TE Connectivity RT314F06 PCB relay 6 V DC 16 A 1 change-over 1 pc(s)

  • Item no.: 508098
  • Manufacturer no.: 8-1393239-6
  • EAN: 2050000158100

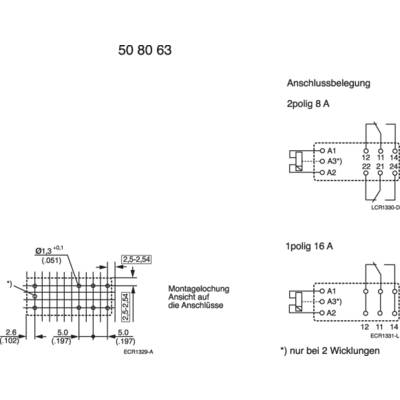

Applications: Battery-operated devices or applications with a "memory function" (e.g. in case of power failure). Coil control: Activate 2 windings +A3/-A2, reset +A3/-A1.

  • Item no.: 508098
  • Manufacturer no.: 8-1393239-6
  • EAN: 2050000158100

Applications: Battery-operated devices or applications with a "memory function" (e.g. in case of power failure). Coil control: Activate 2 windings +A3/-A2, reset +A3/-A1.

  • Creepage current resistance CTI 250
Type RT314F06
Coil nominal voltage 6 V DC
Min. pick-up voltage 4.2 V DC
Control mode bi-stable, 2 coil
R(coil) 55 Ω
Contact type 1 change-over
Contact material AgNi 90/10
Switching voltage (max.) 400 V AC
Switching current (max.) 16 A
Max. switching capacity 4000 VA
Creepage distance (coil/clips) 10 mm
Connection Solder pins
Min. temperature -40 °C
Max. temperature +85 °C
Length 29 mm
Width 12.7 mm
Height 15.7 mm
Content 1 pc(s)
Nominal voltage (details) 6 V DC
Nominal current (details) 16 A
Test voltage (Coil/contact) 5000 Veff
Switching capacity 4000 VA
Switching voltage 250 V AC
Switching current 16 A
Switch-on current 30 A
Number of pins 2-pin
Contact type 1 CO, SPDT
Product type PCB relay

Technical data

  • Creepage current resistance CTI 250
Type RT314F06
Coil nominal voltage 6 V DC
Min. pick-up voltage 4.2 V DC
Control mode bi-stable, 2 coil
R(coil) 55 Ω
Contact type 1 change-over
Contact material AgNi 90/10
Switching voltage (max.) 400 V AC
Switching current (max.) 16 A
Max. switching capacity 4000 VA
