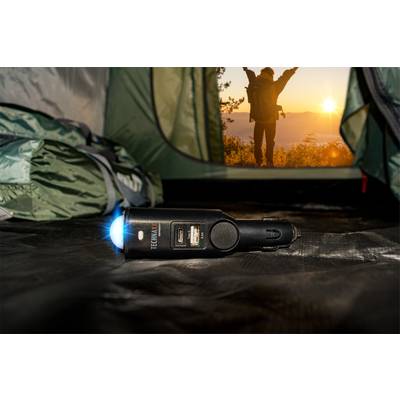

A charging cable lies illuminated in a tent, with a person in the background raising their arms in nature at sunrise.

The open cargo area of a white delivery van, illuminated by daylight. The doors are wide open, revealing the interior.

Two padded boat seats in front of a helm with a steering wheel and instruments. View of a river with plants along the bank.

1/7

Fast track dispatch on Fri, 24 Jul

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 48.73 / piece)

€ 48.73

plus VAT.

Only 9 Piece(s) available

Report legal concerns

Highlights & Details

Auto alarm Pro TX-168

External siren for the engine compartmentButton for panic alarmUSB-C charging portUSB-charging port.Motion detectionPossibility to connect up to 3 remote controls

Technical specifications

Dim: (L x W x H) 30 x 30 x 135 mm

Features: Incl. remote control
In-car surveillance
Built-in LED (flashing)
Built-in battery
Mobile use
Panic button

Operating voltage: 12 V
24 V

Factory colour: Black

Weight: 190 g

Width: 30 mm

Height: 135 mm

Length: 30 mm

: 10 m

SPL: 105 dB

Transmission frequency: 2,4GHz MHz

ECE type approval labels: E13 10R-06 16002

Product type: Car alarm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2574207 Technaxx TX-168 Car alarm Incl. remote control, In-car surveillance, Built-in LED (flashing), Built-in battery, Mobile u

Information

Information 2574207 Technaxx TX-168 Car alarm Incl. remote control, In-car surveillance, Built-in LED (flashing), Built-in battery, Mobile u

Warranty Terms

Warranty Terms 2574207 Technaxx TX-168 Car alarm Incl. remote control, In-car surveillance, Built-in LED (flashing), Built-in battery, Mobile u

Description

The rechargeable car alarm system TX-168, is a multi-functional anti-theft gadget for DC12 or 24V cigarette lighter. The detection range is a 120° cone angle and the very loud alarm signal from 105dB repels thieves. It has a button for panic alarm and also an additional external 105dB siren for the engine compartment for even more attention. The TX-168 has two connections for charging external devices, a USB with a total of 5 V/2.4A and a USB-C with a total output power of 5 V/3.0A. In approx. 2 hours, you can charge the built-in 500mAh lithium polymer battery of the device in the cigarette lighter socket of a car/truck/camper van/boat or in the office/home via a micro USB cable (not included in the delivery). The input voltage of the car alarm system/siren is DC12 or 24V, the operating current of the siren is 100mA. The automatic alarm triggers upon motion detection by the PIR sensor up to 3M distance. The auto alarm time is max. 2 minutes, the alarm time of the siren is max. 30 seconds. With the fully charged, built-in 500mAh battery, the device has an operating time of approx. 7 days and a standby time of approx. 10 days, even when the motor is switched off. The remote control has an operating radius of approx. 10m and is included in the delivery together with a CR2032 battery. Some other interesting technical data are: 1.5m siren cable length, transmission frequency: 2.4GHz/type ASK, maximum transmitted power: 15.85mW, material: ABS, operating temperature: -10°C to +50°C. The TX-168 auto alarm is quick and easy to install, and you don't need to be an engineer to set up and operate this anti-theft gadget. It can also be used as a stand-alone device, and up to 3 remote controls can be connected to the device.

This text is machine translated.

Features

Detection range: 120° conicalRange of the IR remote control: ~10m (open field)Alarm time: Auto alarm max. 2min; Siren max. 30sIntegrated, rechargeable 500mAh lithium-polymer battery 3.7VCharging time ~2 hours / operating time ~7 days / standby time ~14 daysInput voltage auto alarm / siren: DC12 or 24VOperating current (siren): 100mACable length of the siren 1.5mTransmission frequency: 2.4 GHz / frequency type: ASKRadiated output power: Max. 15.85mWHousing material: ABS plastic.Operating temperature: -10°C – +50°C.12 / 24V via cigarette lighter socketExternal siren for the engine compartment for increased attentionButton for panic alarm (approx. 105dB)USB-C charging port with total 5V / 3.0A output powerUSB charging port with a total output power of 5V / 2.4AAutomatic alarm trigger upon motion detection by the PIR sensorCar alarm and external siren with approx. 105dBPossibility to connect up to 3 remote controls

Scope of delivery

External siren with connection cable and 3A fuse
Remote control (with CR2032 battery)
Fitting Material

Description

Features

Detection range: 120° conicalRange of the IR remote control: ~10m (open field)Alarm time: Auto alarm max. 2min; Siren max. 30sIntegrated, rechargeable 500mAh lithium-polymer battery 3.7VCharging time ~2 hours / operating time ~7 days / standby time ~14 daysInput voltage auto alarm / siren: DC12 or 24VOperating current (siren): 100mACable length of the siren 1.5mTransmission frequency: 2.4 GHz / frequency type: ASKRadiated output power: Max. 15.85mWHousing material: ABS plastic.Operating temperature: -10°C – +50°C.12 / 24V via cigarette lighter socketExternal siren for the engine compartment for increased attentionButton for panic alarm (approx. 105dB)USB-C charging port with total 5V / 3.0A output powerUSB charging port with a total output power of 5V / 2.4AAutomatic alarm trigger upon motion detection by the PIR sensorCar alarm and external siren with approx. 105dBPossibility to connect up to 3 remote controls

Scope of delivery

External siren with connection cable and 3A fuse
Remote control (with CR2032 battery)
Fitting Material
