Testboy TB-3000 Handheld multimeter Digital CAT IV 600 V Display (counts): 2000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Only 2 Piece(s) available
Highlights & Details

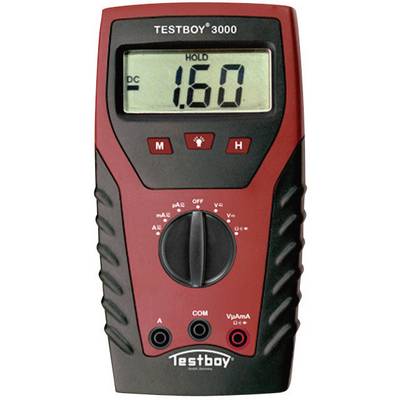

Digital-Multimeter Testboy® 3000
- 5-year manufacturer’s guarantee.
- Integrated LED flashlight.
- CAT IV 600V
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
200 Ω - 20 MΩ
- DC resistance
7.5 MΩ
- AC resistance
7.5 MΩ
- Basic accuracy
0.8 %
- Measurement type (details)
Average
- Frequency range
40 Hz - 400 Hz Hz
- Interfaces
none
- Power supply (details)
2 x AAA
- Height
165 mm
- Width
85 mm
- Weight
300 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
TB-3000
- Display
Digital
- Display (counts)
2000
- Dim
(W x H) 85 mm x 165 mm
- Basic accuracy
0.5 %
- Displays
2000 counts
- Reading category
CAT IV 600V
Documents & Downloads
Datasheet
Datasheet 123166 Testboy TB-3000 Handheld multimeter Digital CAT IV 600 V Display (counts): 2000
User & Safety Instructions
User & Safety Instructions 123166 Testboy TB-3000 Handheld multimeter Digital CAT IV 600 V Display (counts): 2000
User & Safety Instructions 123166 Testboy TB-3000 Handheld multimeter Digital CAT IV 600 V Display (counts): 2000
Description
Modern Design and latest Technology An extra function area, leak-proof ABS-casing and the simple handling enables the universal application in industry and cottage industry The integrated LED torch and the built-in contact free voltage sensor shows Testboy® 3000, and increases the safety of the user.
Features
- Standard Measuring area V, A, Ω
- Auto-ranging
- Diode test
- Acoustic continuity tester
- Data-hold
- Contact-free voltage testing
- LED-Flashlight.
- TÜV/GS tested and approved
Scope of delivery
- Handy case
- Test leads
- Batteries
- User manual.
