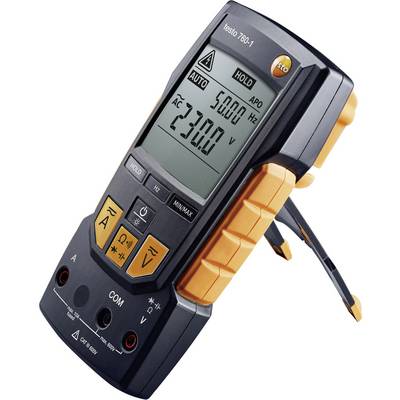

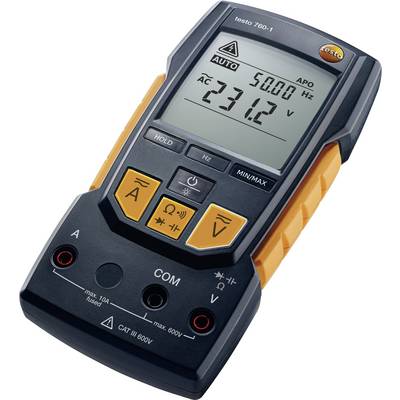

testo 760-1 Handheld multimeter Digital CAT III 600 V, CAT IV 300 V Display (counts): 4000

  • Item no.: 1436987
  • Manufacturer no.: 0590 7601
  • EAN: 4029547013942

The operation of the multimeter is easier and more modern than ever. The traditional dial is replaced by function keys, enabling you to control the instrument with just one hand. And thanks to the large, illuminated display you can see your readings …

  • Warranty: 24 months
  • Manufacturer: testo
  • Item no.: 1436987
  • Manufacturer no.: 0590 7601
  • EAN: 4029547013942

The operation of the multimeter is easier and more modern than ever. The traditional dial is replaced by function keys, enabling you to control the instrument with just one hand. And thanks to the large, illuminated display you can see your readings …

  • Warranty: 24 months
  • Manufacturer: testo
  • Accuracy: 0,8 %
  • Measuring range voltage: 0,1 mV ... 600 V AC/DC
  • Measuring range current: 1 mA … 10 A AC/DC
  • Measuring range Resistance: 0,1 … 40 MΩ
  • Measuring range Frequency: 0,001 Hz … 500 kHz
  • Measuring range Capacitance: 0,001 nF … 100 μF
  • Overvoltage Category: CAT IV 300 V
  • CAT III 600 V
  • Protection class: IP64
  • Operating temperature: -10 … +50 °C
  • Dimensions: 167 x 84 x 45 mm
  • Authorizations: TÜV, CSA, CE
  • Standard: EN 61326-1
Voltage reading range DC (min.) 0.1 V
Voltage DC reading range (max.) 600 V
V AC reading range (min.) 0.1 V
V AC reading range (max.) 600 V
Amperage reading range DC (min.) 1 mA
A DC reading range (max.) 10 A
A AC reading range (min.) 1 mA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω - 40 MΩ
Reading range - capacity 0,001 nF - 100μ F
Frequency reading range 0.001 Hz - 512 kHz
DC resistance 11 MΩ
AC resistance 11 MΩ
Basic accuracy 0.8 %
Measurement type Average
Frequency range 50/60 Hz
Power supply (details) 3x AAA battery
Height 45 mm
Width 84 mm
Length 167 mm
Weight 295 g
Calibrated to
Manufacturer's standards (no certificate)
Reading category CAT III 600 V , CAT IV 300 V
Voltage metering AC/DC
Current reading AC/DC
Type 760-1
Display Digital
Display (counts) 4000
Product type Handheld multimeter

Technical data

  • Accuracy: 0,8 %
  • Measuring range voltage: 0,1 mV ... 600 V AC/DC
  • Measuring range current: 1 mA … 10 A AC/DC
  • Measuring range Resistance: 0,1 … 40 MΩ
  • Measuring range Frequency: 0,001 Hz … 500 kHz
  • Measuring range Capacitance: 0,001 nF … 100 μF
  • Overvoltage Category: CAT IV 300 V
  • CAT III 600 V
  • Protection class: IP64
  • Operating temperature: -10 … +50 °C
  • Dimensions: 167 x 84 x 45 mm
  • Authorizations: TÜV, CSA, CE
  • Standard: EN 61326-1
Voltage reading range DC (min.) 0.1 V
Voltage DC reading range (max.) 600 V
V AC reading range (min.) 0.1 V
V AC reading range (max.) 600 V
Amperage reading range DC (min.) 1 mA
A DC reading range (max.) 10 A
A AC reading range (min.) 1 mA
Amperage reading range AC (max.) 10 A
Reading range - resistance 0.1 Ω - 40 MΩ
Reading range - capacity 0,001 nF - 100μ F
