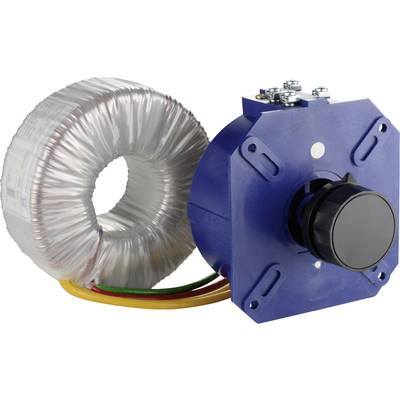

Thalheimer TSE 002 Variac 1 x 230 V 368 VA 1.60 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 231.09 / piece)
€
Highlights & Details
Variable isolating transformer set (Installation type)
- 0 - 250 V/DC
- 1.6A
Technical specifications
- Operating mode: DB
- Connection type: screw terminals.
- Testing voltage: 4 kV/AV surge against voltage carrying parts
- For shafts with intermediate protective insulation: 4 kV/AV at end of the shafts till shaft
- Slide way: Nickel
- Winding distributed to 320º
- Product type
Variac
- Output voltage (min.)
230 V AC
- Output voltage (max.)
230 V AC
- No. of outputs
1 x
368 VA
- Connection
Screws
- Dim
- No. of inputs
1 x
- Output current
1.60 A
- Input voltage (number x voltage)
1 x 230 V
- Input voltage
230 V
- Frequency
50 - 60 Hz
- Content
1 Set
- RoHS-compliant
- Type
TSE 002
350 W
- Mounting type
4-point flange mounting
Documents & Downloads
Datasheet
Datasheet 516546 Thalheimer TSE 002 Variac 1 x 230 V 368 VA 1.60 A
User & Safety Instructions
User & Safety Instructions 516546 Thalheimer TSE 002 Variac 1 x 230 V 368 VA 1.60 A
Description
The two transformers are matched. This provides full galvanic separation between the input and output.
Scope of delivery
- Variable transformer and isolating transformer
